Radio Antenna Cable Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

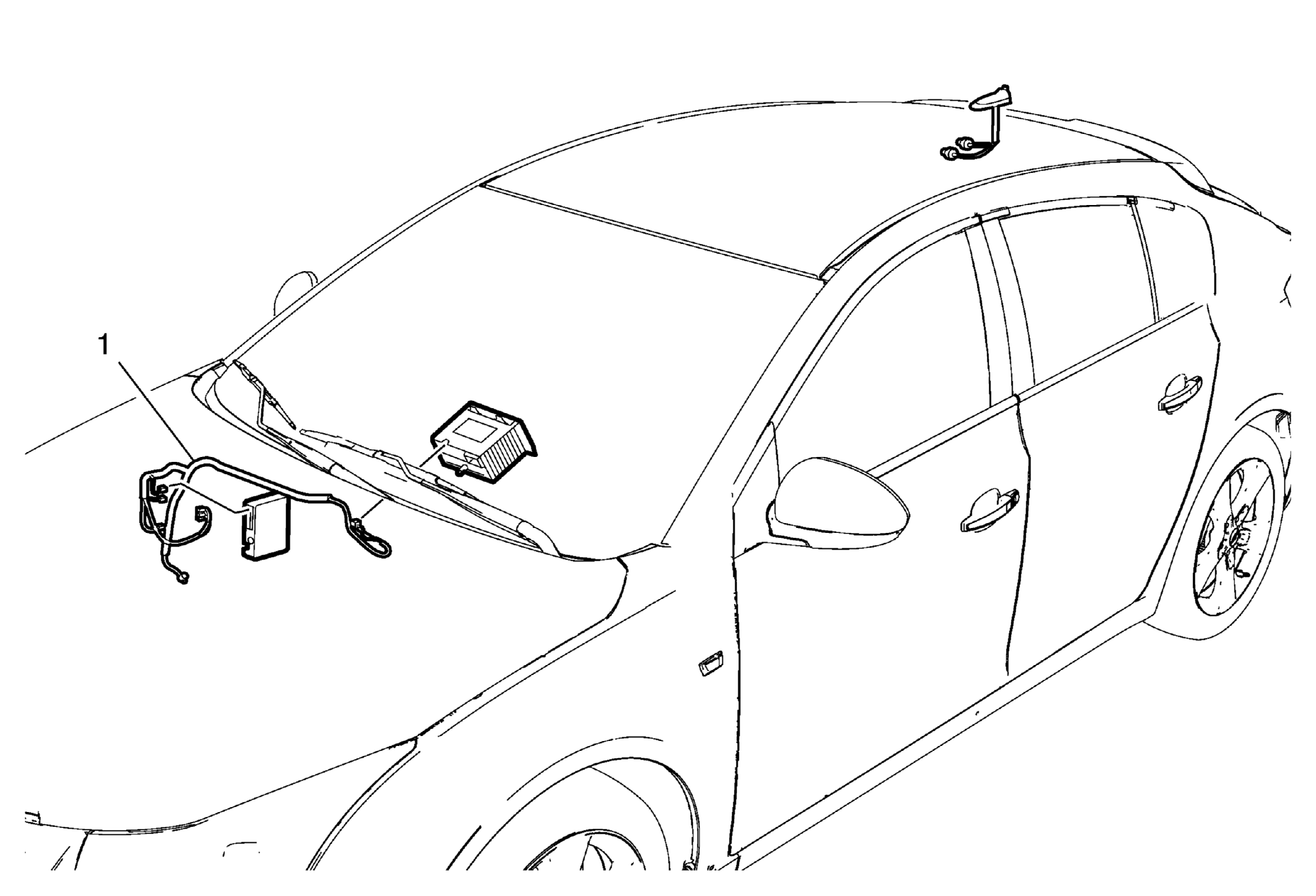

Callout	Component Name
Preliminary Procedures Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
1	Radio Antenna Cable Procedures Locate the radio antenna cable in the instrument panel wiring harness assembly. Carefully cut the electrical tape. Disconnect electrical connectors. Replace the radio antenna cable. Secure the radio antenna cable within the electrical conduit.

Callout

Component Name

Preliminary Procedures
Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .

Radio Antenna Cable

Procedures

Locate the radio antenna cable in the instrument panel wiring harness assembly.
Carefully cut the electrical tape.
Disconnect electrical connectors.
Replace the radio antenna cable.
Secure the radio antenna cable within the electrical conduit.
