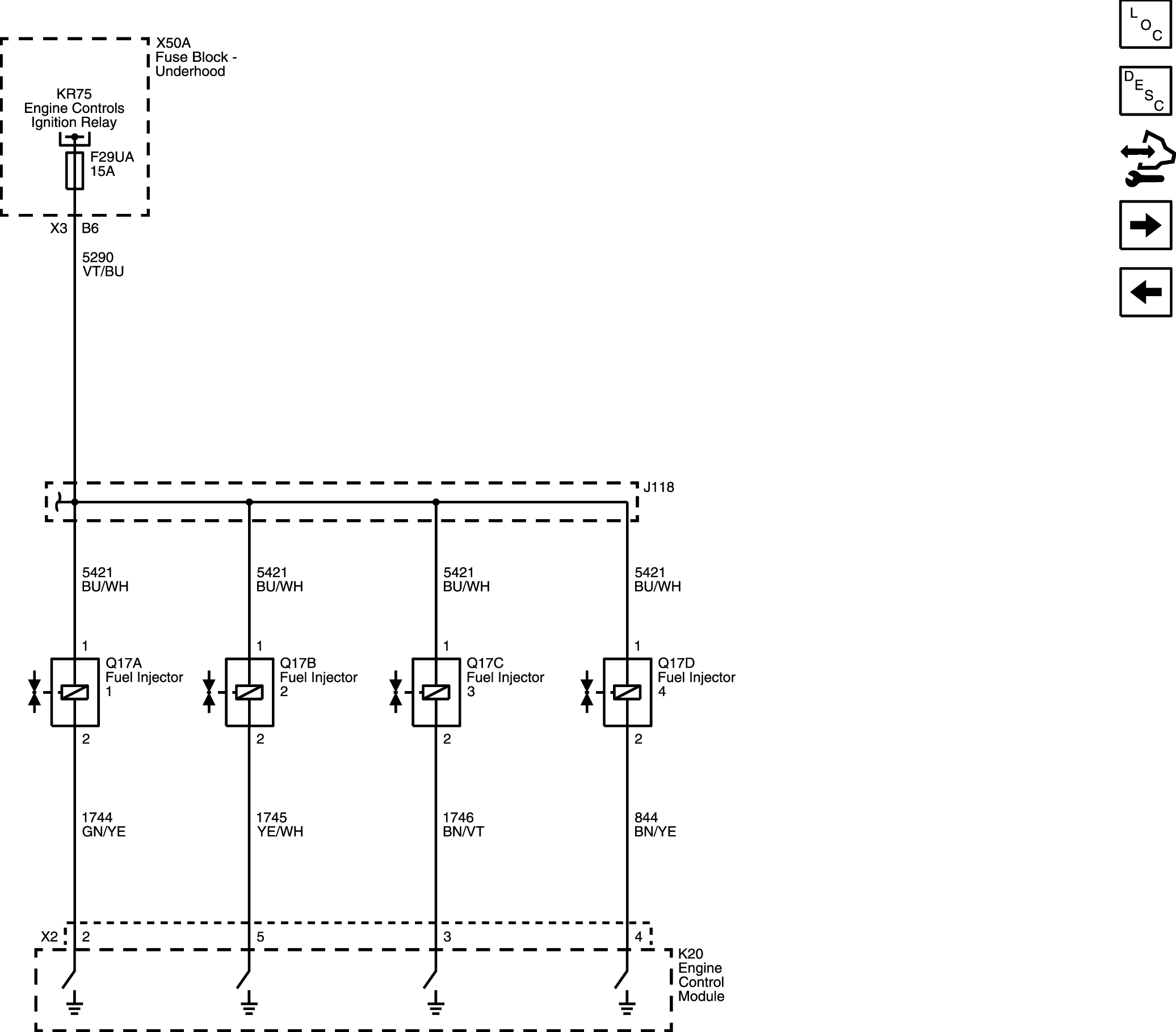

Home >> Chevrolet >> 2019 >> Sonic LS, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls/Fuel - 1.4L (LUV) - Engine Controls Schematics >> Schematic and Wiring Diagrams >> Engine Controls Wiring Schematics >> Fuel Controls - Fuel Injectors
