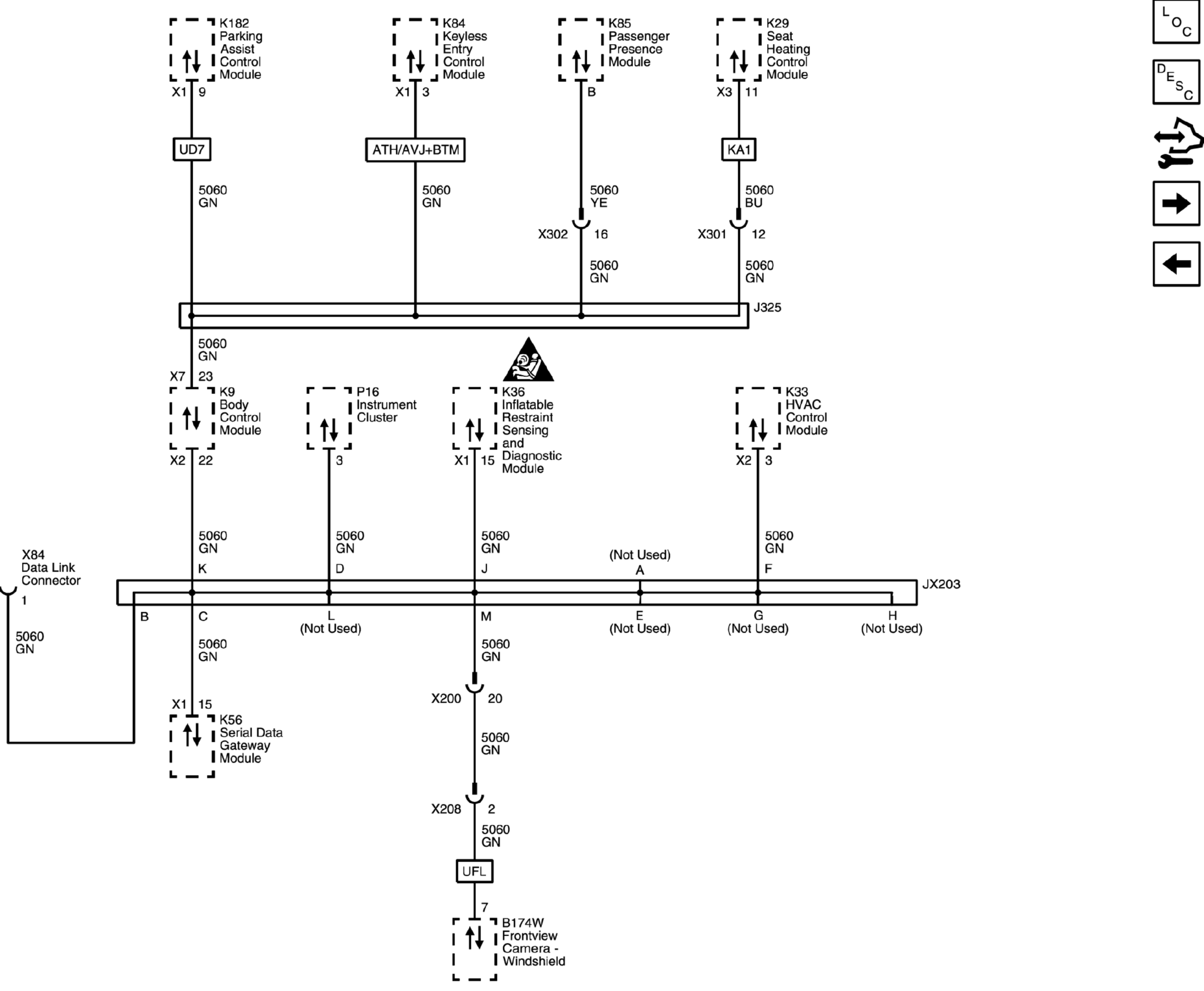

Home >> Chevrolet >> 2019 >> Sonic LS, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications System >> Schematic and Routing Diagrams >> Data Communication Wiring Schematics >> Power, Ground, and Low Speed GMLAN
