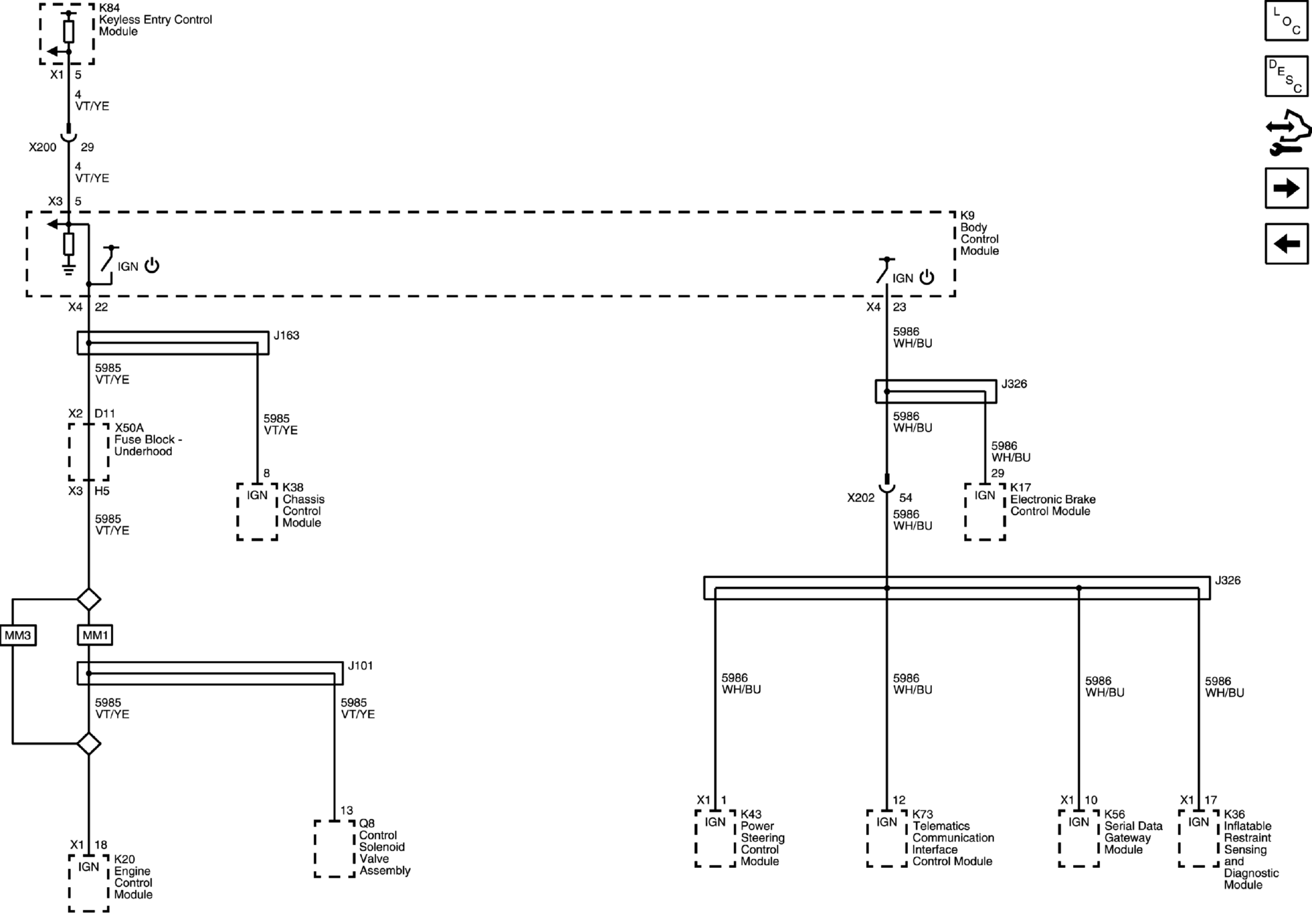

Communication Enable and Local Interconnect Network (-ATH/AVJ+BTM)

GM4959698

Courtesy of GENERAL MOTORS COMPANY
