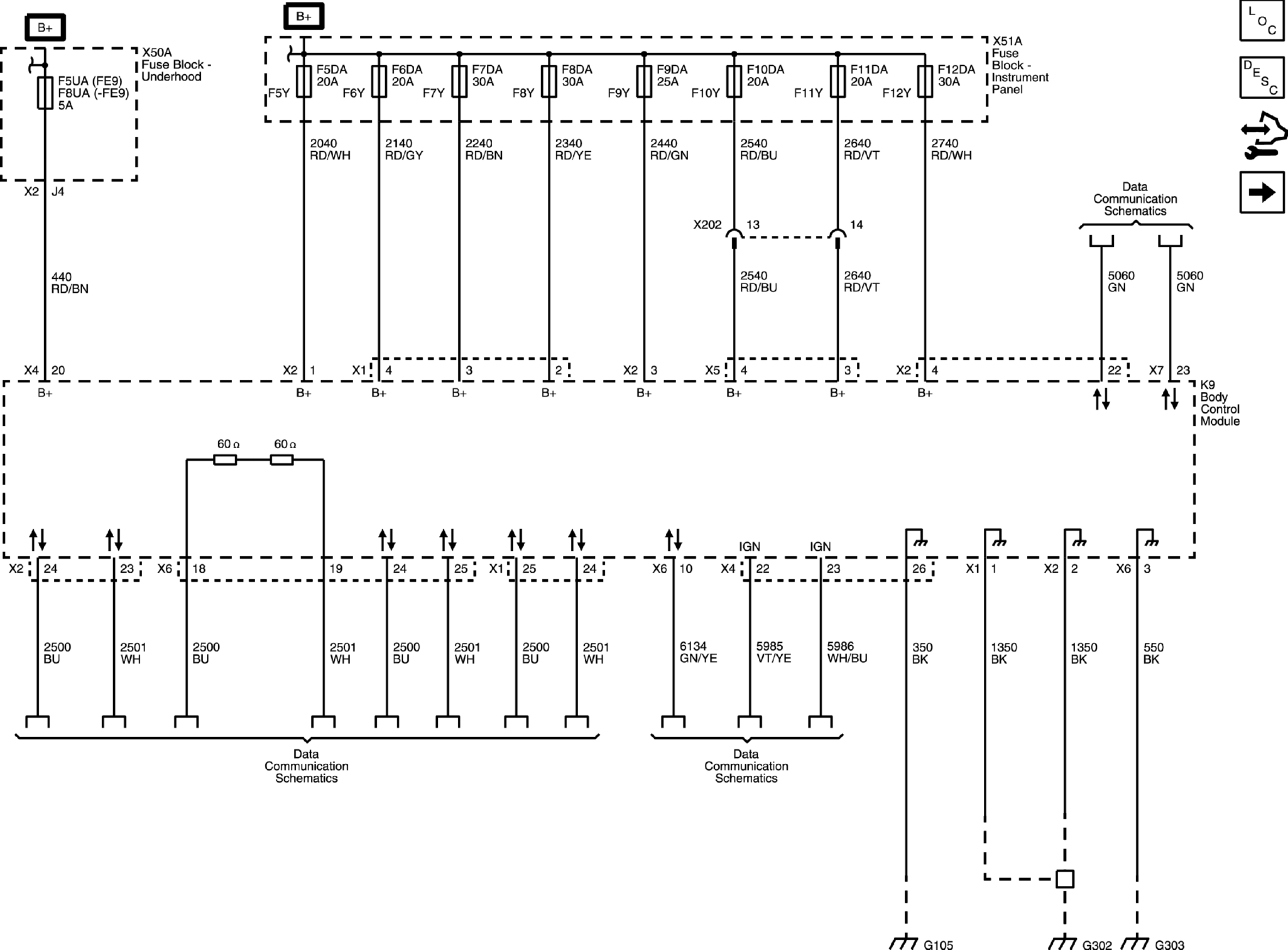

Power, Ground, Data Communications, and Subsystem References (1 of 5)

GM4959704

Courtesy of GENERAL MOTORS COMPANY
