Battery Hold Down Retainer Reinforcement Replacement

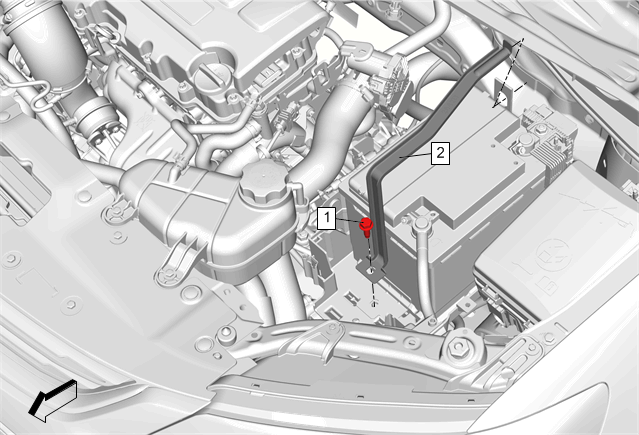

GM4775914Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the hood.
1 Battery Hold Down Retainer Reinforcement Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Battery Hold Down Retainer Reinforcement
