Home >> Chevrolet >> 2019 >> Sonic LS, Automatic Trans >> Repair and Diagnosis >> Brakes >> Traction Control >> Antilock Brake System >> Schematic and Routing Diagrams >> Antilock Brake System Wiring Schematics >> Stability Control

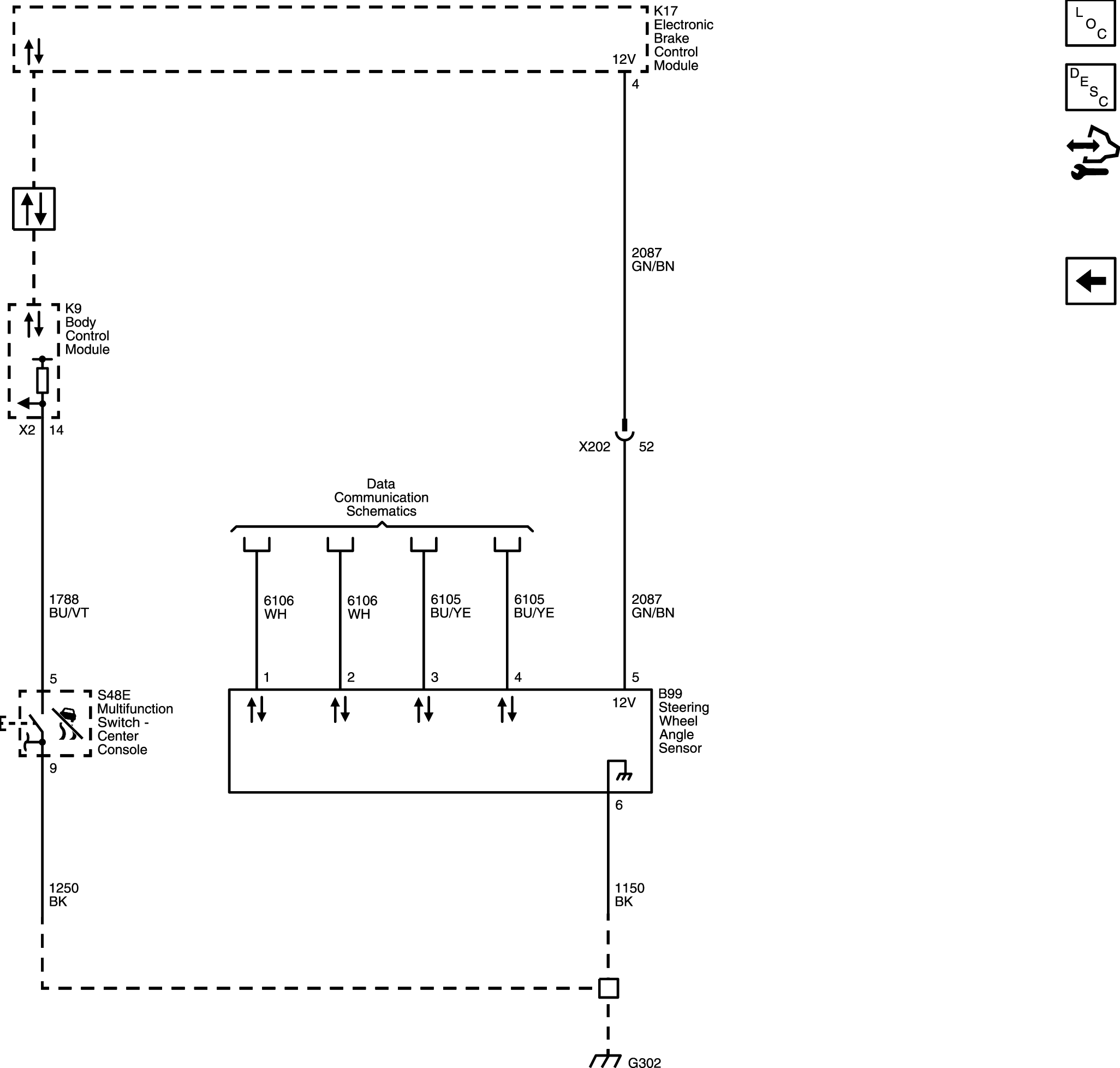

Stability Control

GM4959595

Courtesy of GENERAL MOTORS COMPANY
