Chassis Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

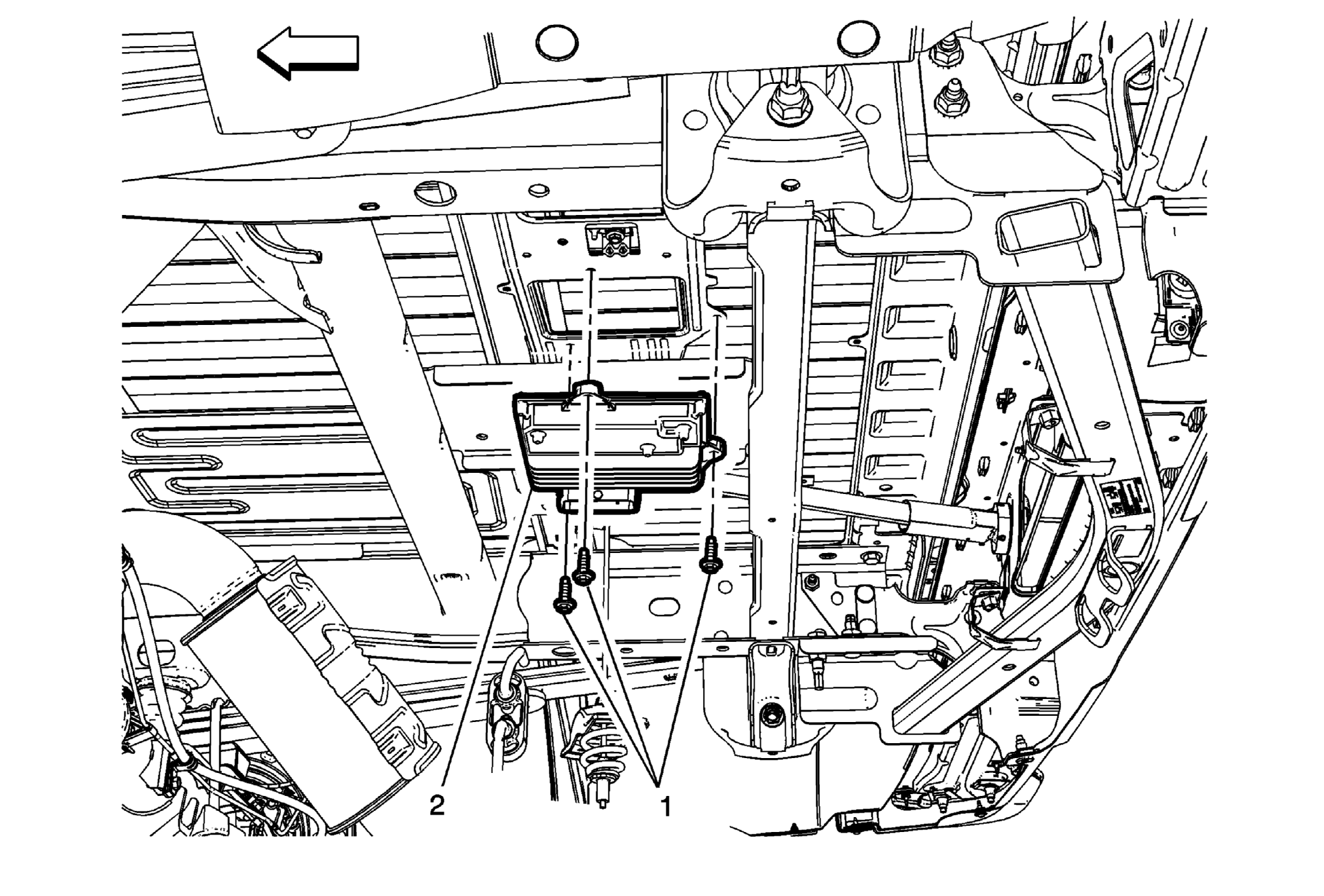

Callout	Component Name
Preliminary Procedure Remove the spare tire. Refer to Spare Wheel Hoist Replacement .
1	Chassis Control Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Chassis Power Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the spare tire. Refer to Spare Wheel Hoist Replacement .

Chassis Control Module Fastener (Qty: 3)

CAUTION:

Tighten
9 N.m (80 lb in)

Chassis Power Control Module

Procedure
