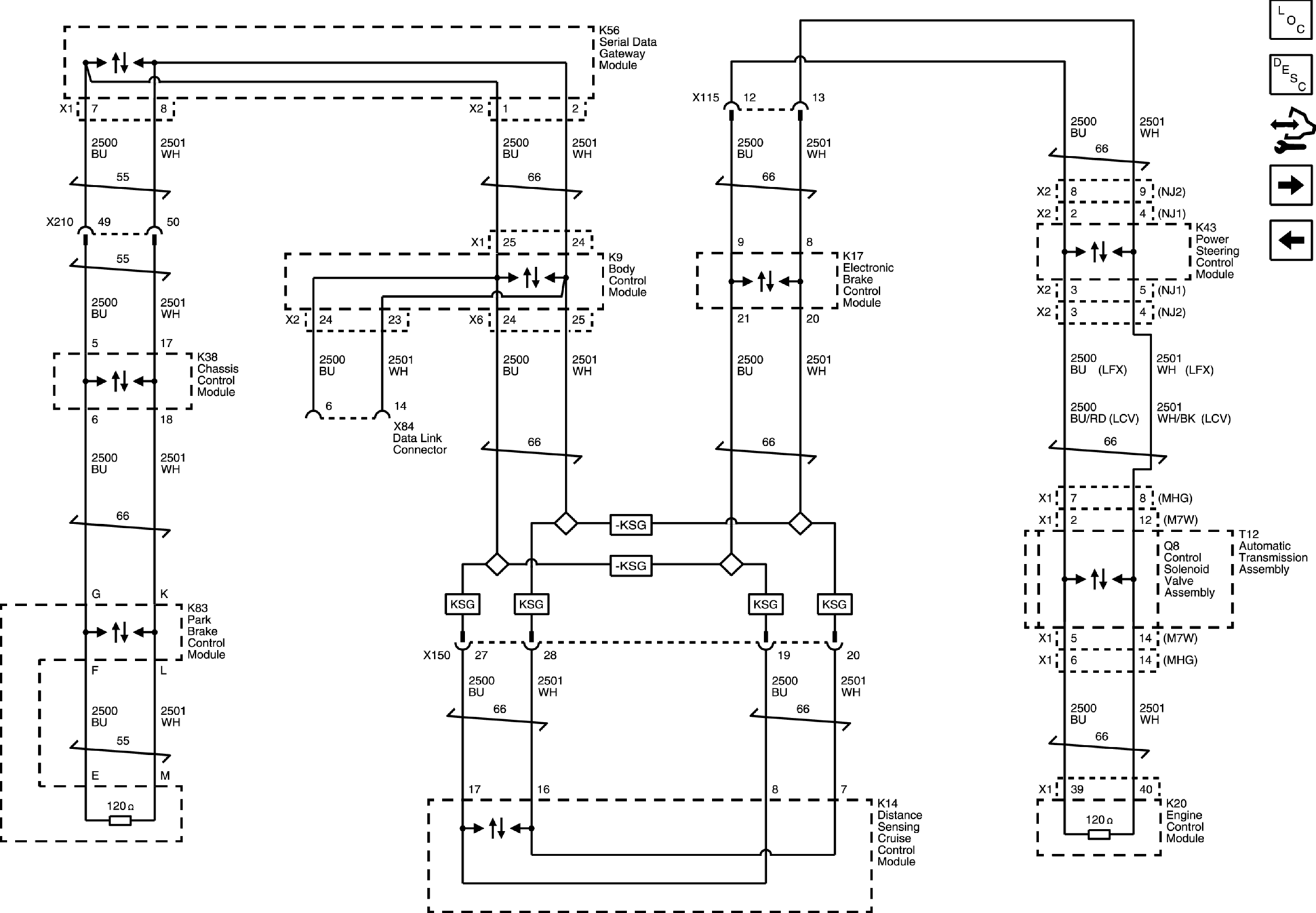

Home >> Chevrolet >> 2019 >> Impala Premier, Gas >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> High Speed GMLAN
