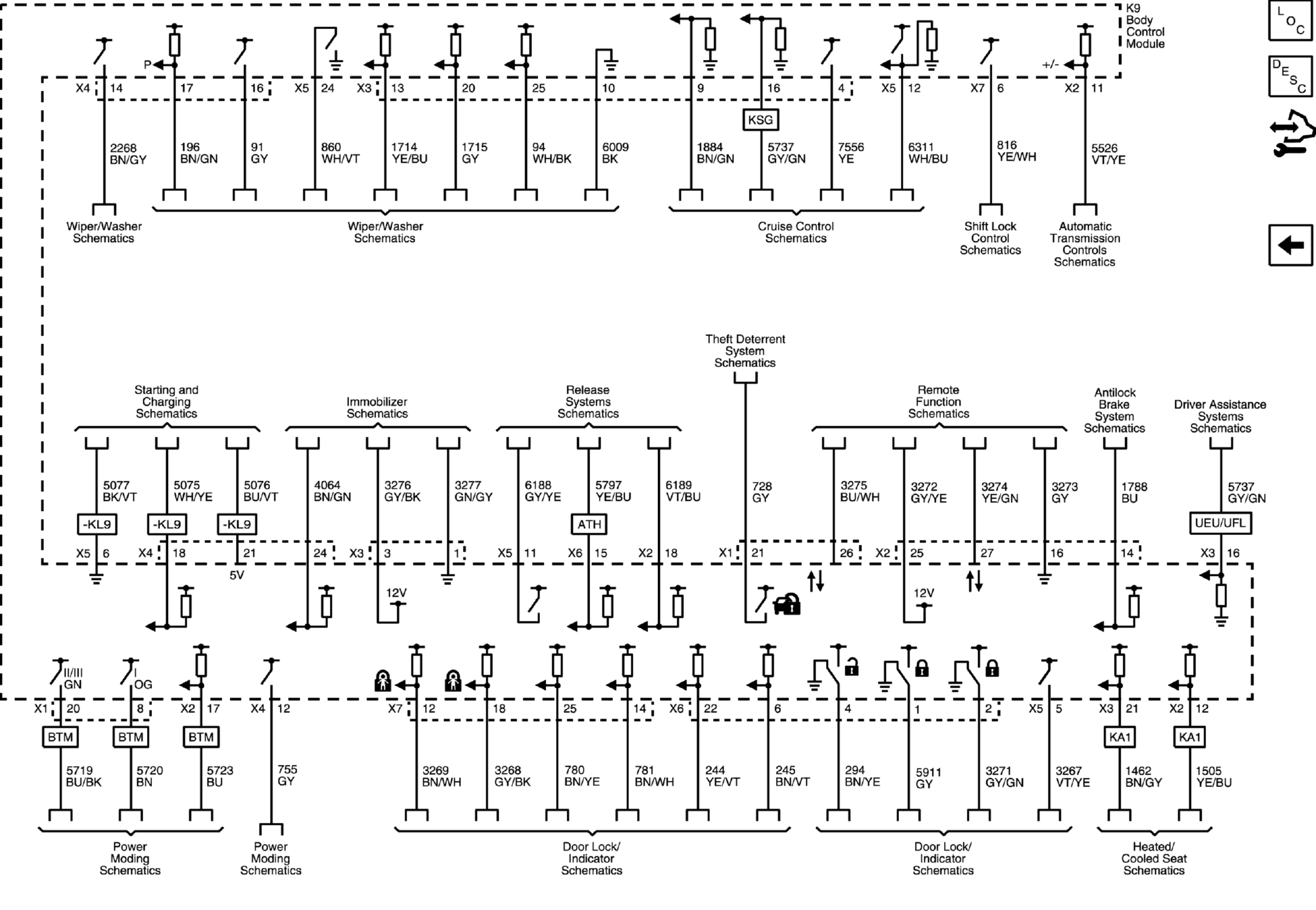

Home >> Chevrolet >> 2019 >> Impala Premier, Gas >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications >> Schematic Wiring Diagrams >> Body Control System Wiring Schematics >> Subsystem References (3 of 3)
