USB Receptacle Replacement

WARNING: This page is about a different car, the 2018 GMC Savana 3500, 2018 GMC Savana 2500, 2018 Chevrolet Express 3500, and 2018 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

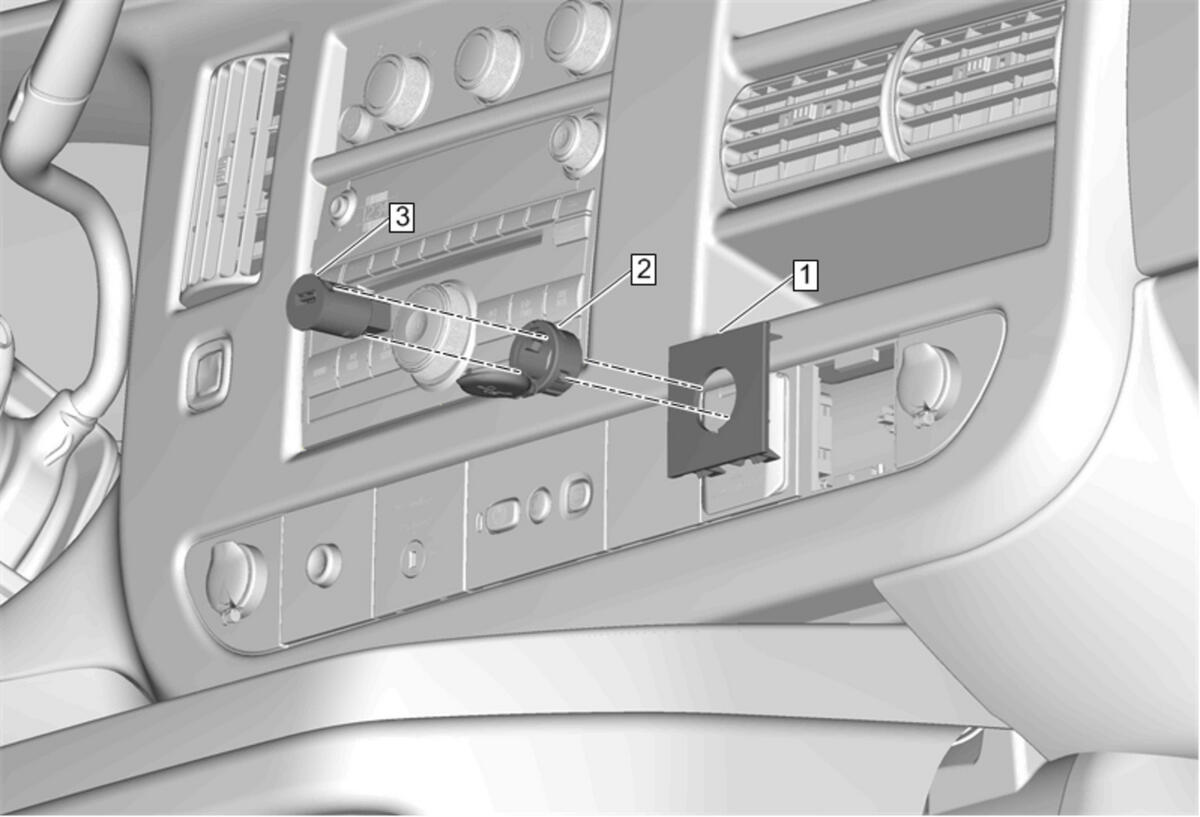

GM4843767Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Instrument Panel Outer Trim Cover
2 Audio Disc Player and USB Receptacle Cover
3 USB Receptacle
Procedure
Disconnect the electrical connector.
