Radio Replacement

WARNING: This page is about a different car, the 2018 GMC Savana 3500, 2018 GMC Savana 2500, 2018 Chevrolet Express 3500, and 2018 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

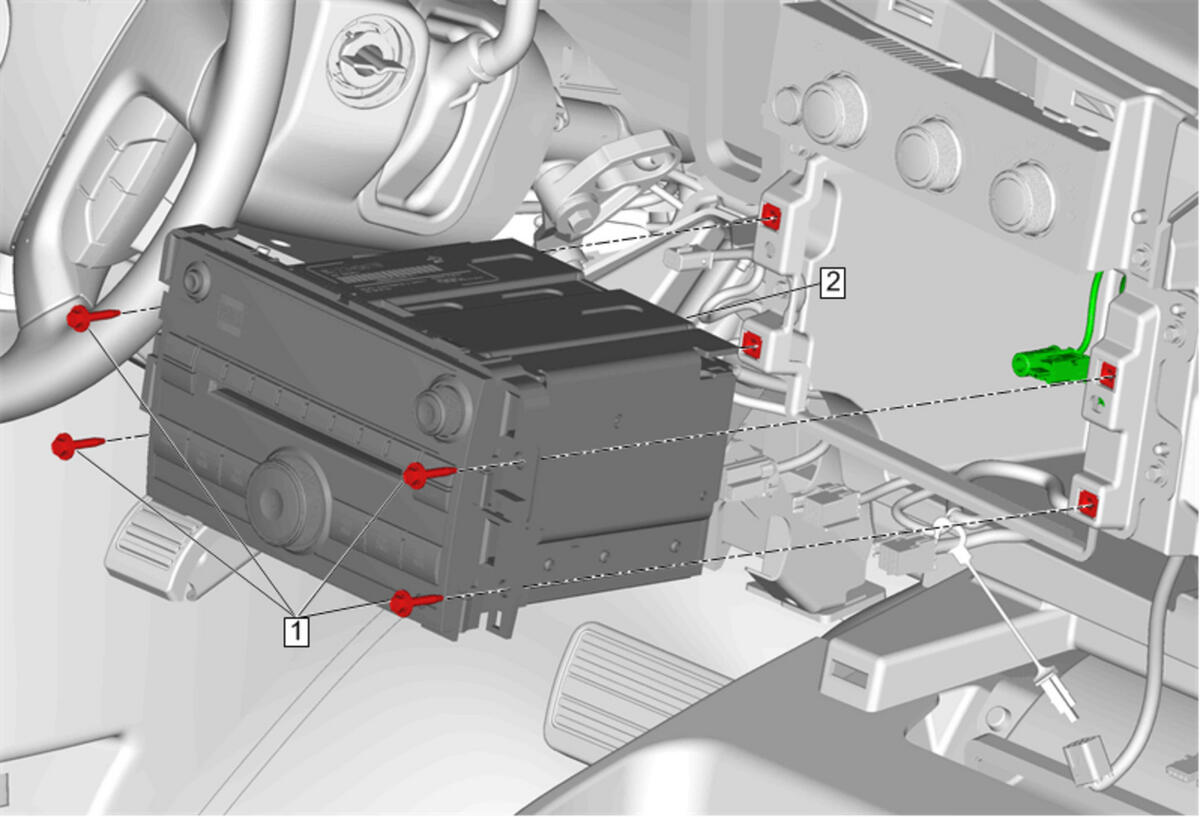

GM4831195Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Cluster Trim Plate Replacement
1 Radio Control Bolt [4x]
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Radio

Procedure

  1. Disconnect the electrical connectors.
  2. Perform the necessary programming and setup procedure: Control Module References
