Installation Procedure

WARNING: This page is about a different car, the 2018 GMC Savana 3500, 2018 GMC Savana 2500, 2018 Chevrolet Express 3500, and 2018 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

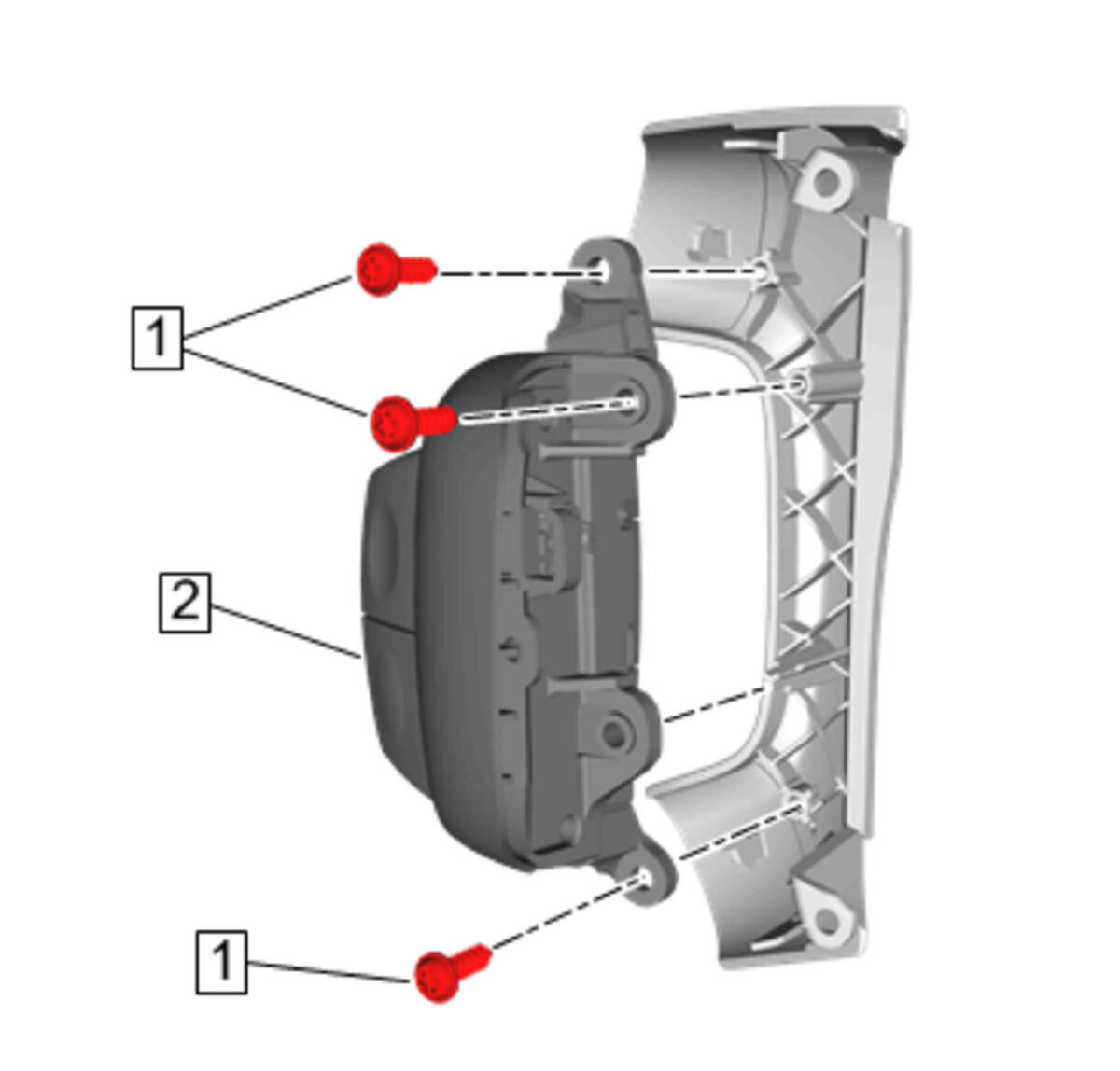

  1. GM4895430Courtesy of GENERAL MOTORS COMPANY

    Radio Control Switch (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  3. Radio Control Switch Bolt (1) - Install and tighten [3x] 1.0 N.m (9.0 lb in)

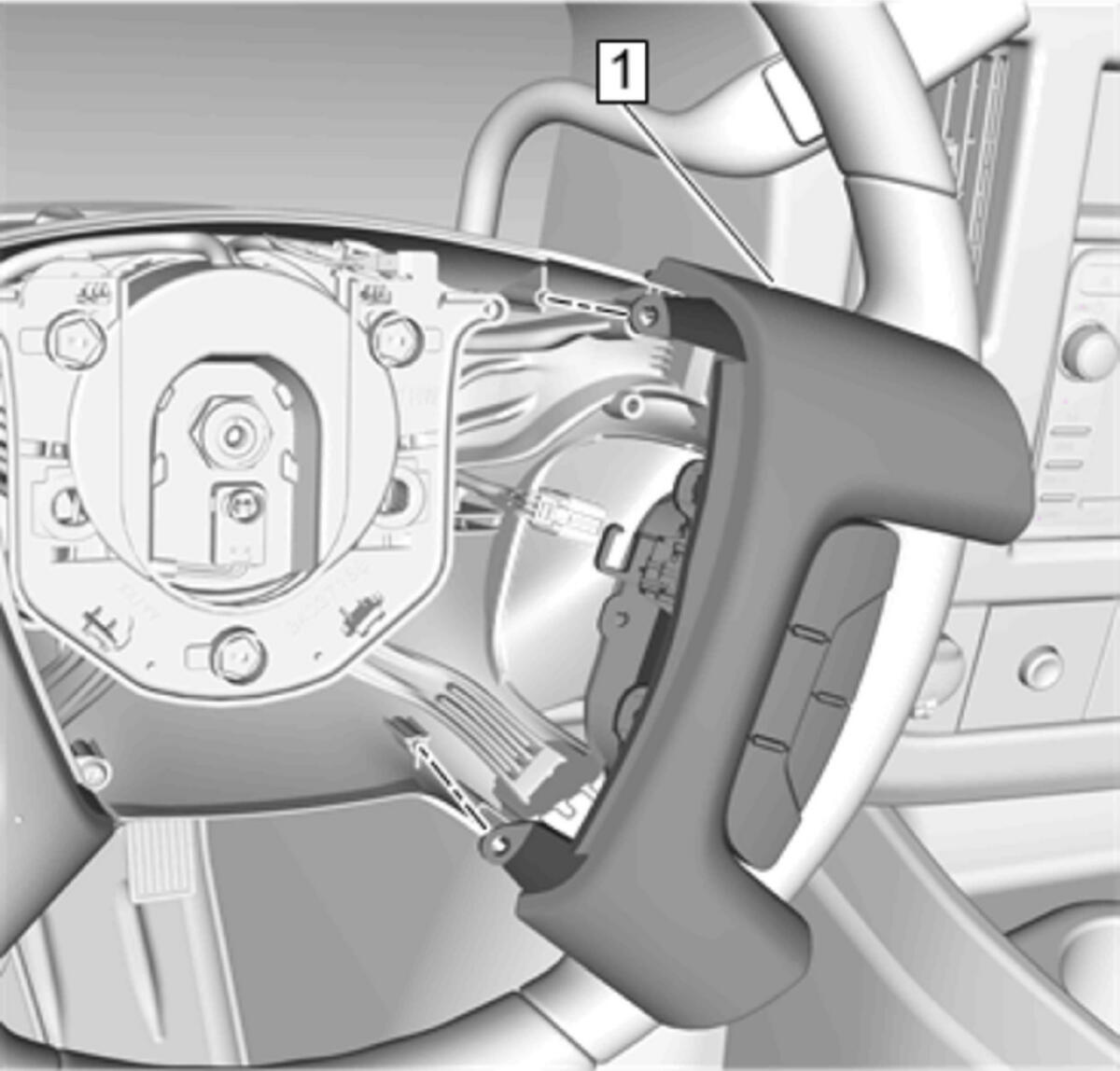

  4. GM4895419Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Spoke Lower Cover- Right Side (1) - Install - Steering Wheel Spoke Lower Cover Replacement - Right Side

  5. Airbag Steering Wheel Module - Install - Airbag Steering Wheel Module Replacement
