Navigation Signal Splitter Replacement
WARNING: This page is about a different car, the 2018 GMC Savana 3500, 2018 GMC Savana 2500, 2018 Chevrolet Express 3500, and 2018 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

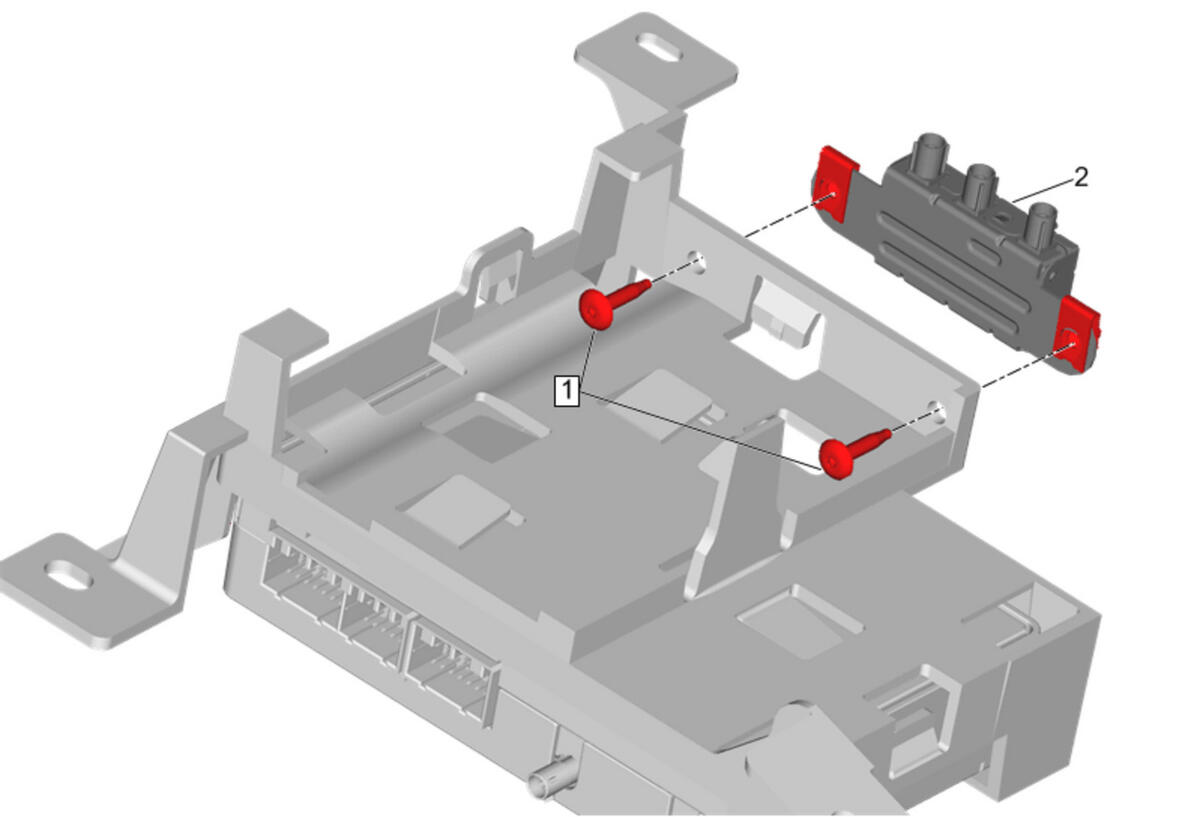

| Callout | Component Name |
|---|---|
| Preliminary Procedure Digital Radio Receiver Replacement |
|
| 1 | Navigation Signal Splitter Bracket Bolt [2x]
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Navigation Signal Splitter |
