Communication Center Call Switch Replacement

WARNING: This page is about a different car, the 2018 GMC Savana 3500, 2018 GMC Savana 2500, 2018 Chevrolet Express 3500, and 2018 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

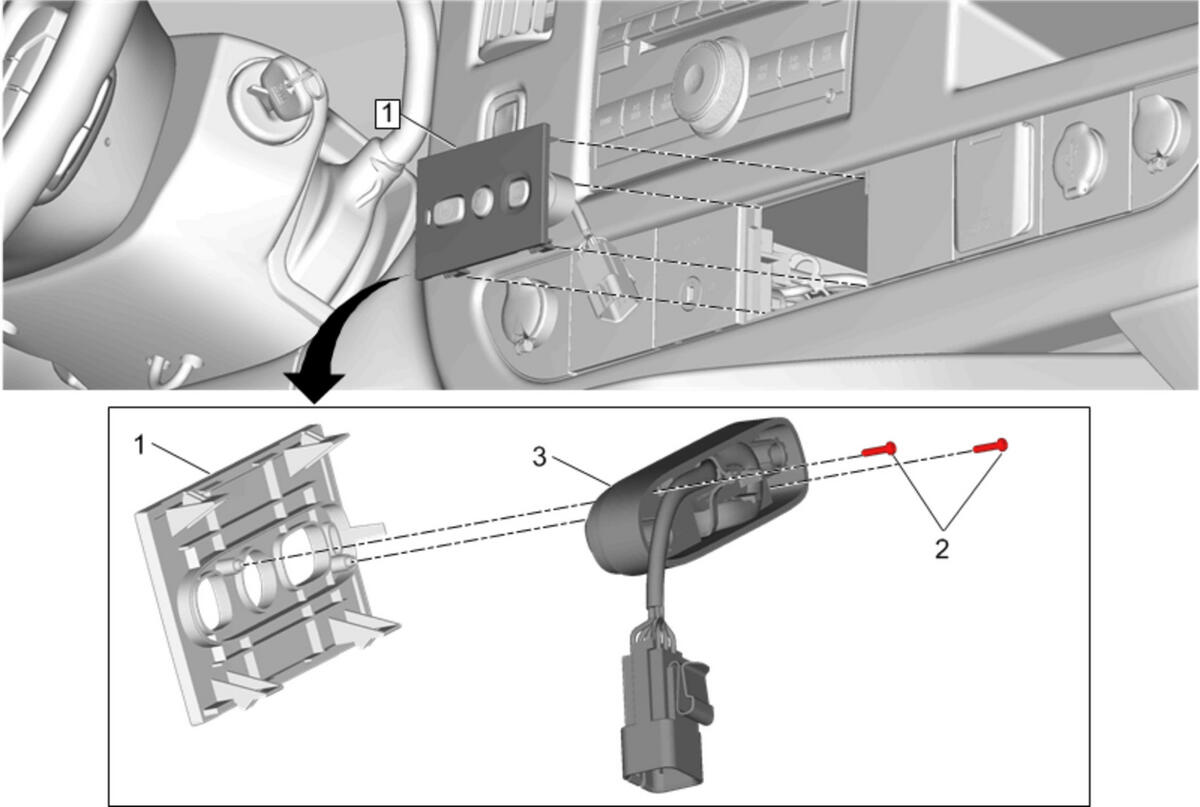

GM4842644Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Engine Cover Replacement
1 Communication Center Call Switch Bezel
2 Communication Center Call Switch Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
3 Communication Center Call Switch
Procedure
Disconnect the electrical connector.
