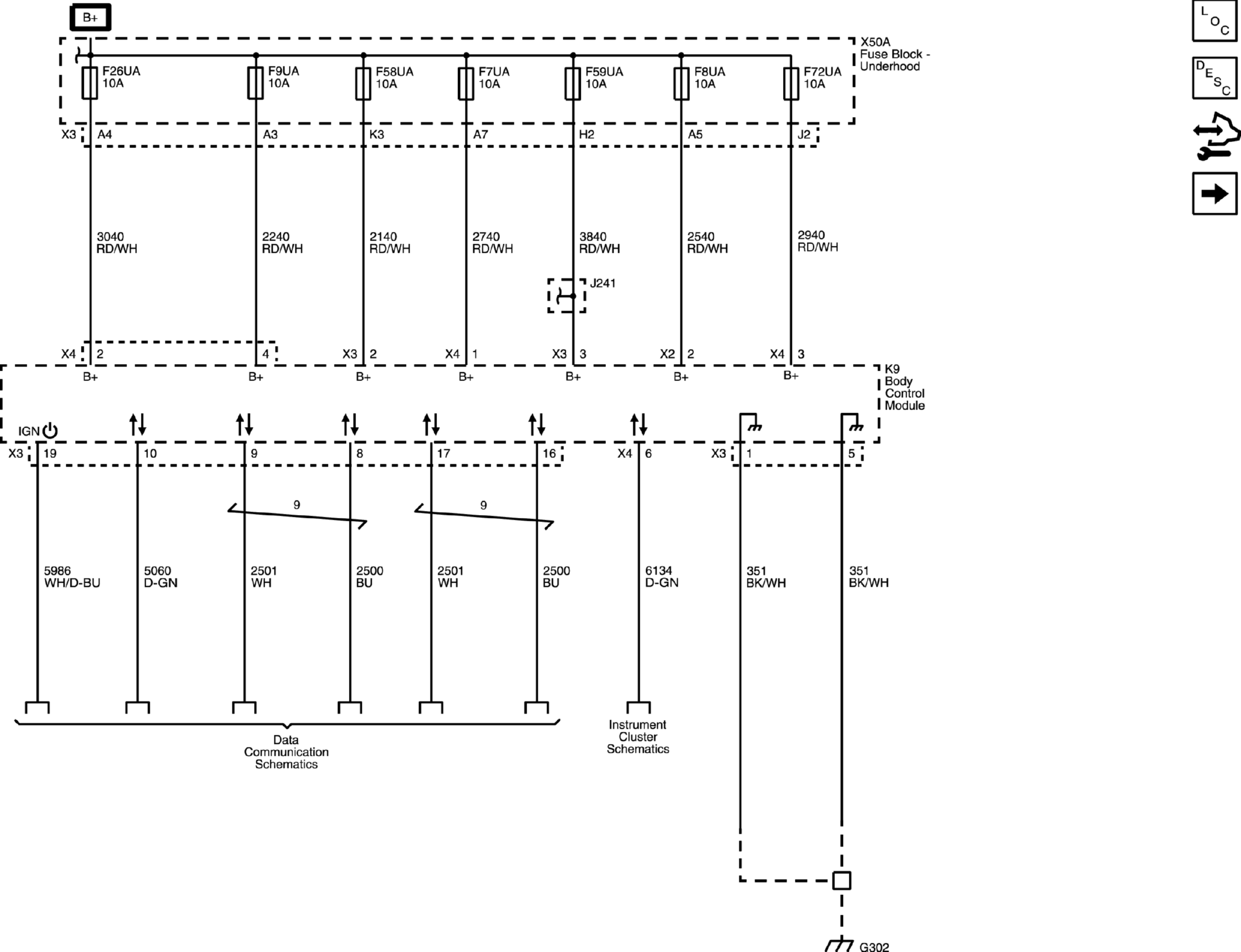

Home >> Chevrolet >> 2019 >> Express 2500 Base, Van Cargo Extended, 2.8L Eng VIN 1 >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications System >> Schematic Wiring Diagrams >> Body Control System Wiring Schematics >> BCM Power, Ground and Serial Data
