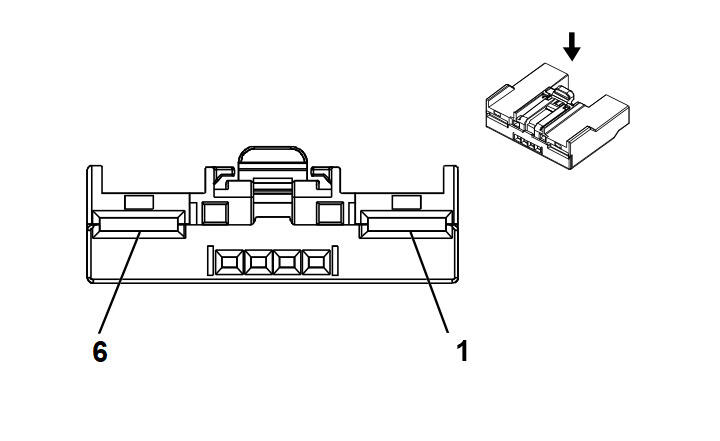

K8 Blower Motor Control Module X2
WARNING: This page is about a different car, the 2018 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13965831
- Service Connector: 19330673
- Description: 6-Way F 0.64 GET, 6.3 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-42 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
4 |
RD/BU |
840 |
Battery Positive Voltage |
I |
- |
| 2 |
0.35 |
BU/GY |
754 |
Blower Motor Speed Control |
II |
- |
| 3 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
4 |
BK |
1850 |
Ground |
I |
- |
