Section 65 (Cellular System, Entertainment System, And Navigation System)
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics
>>

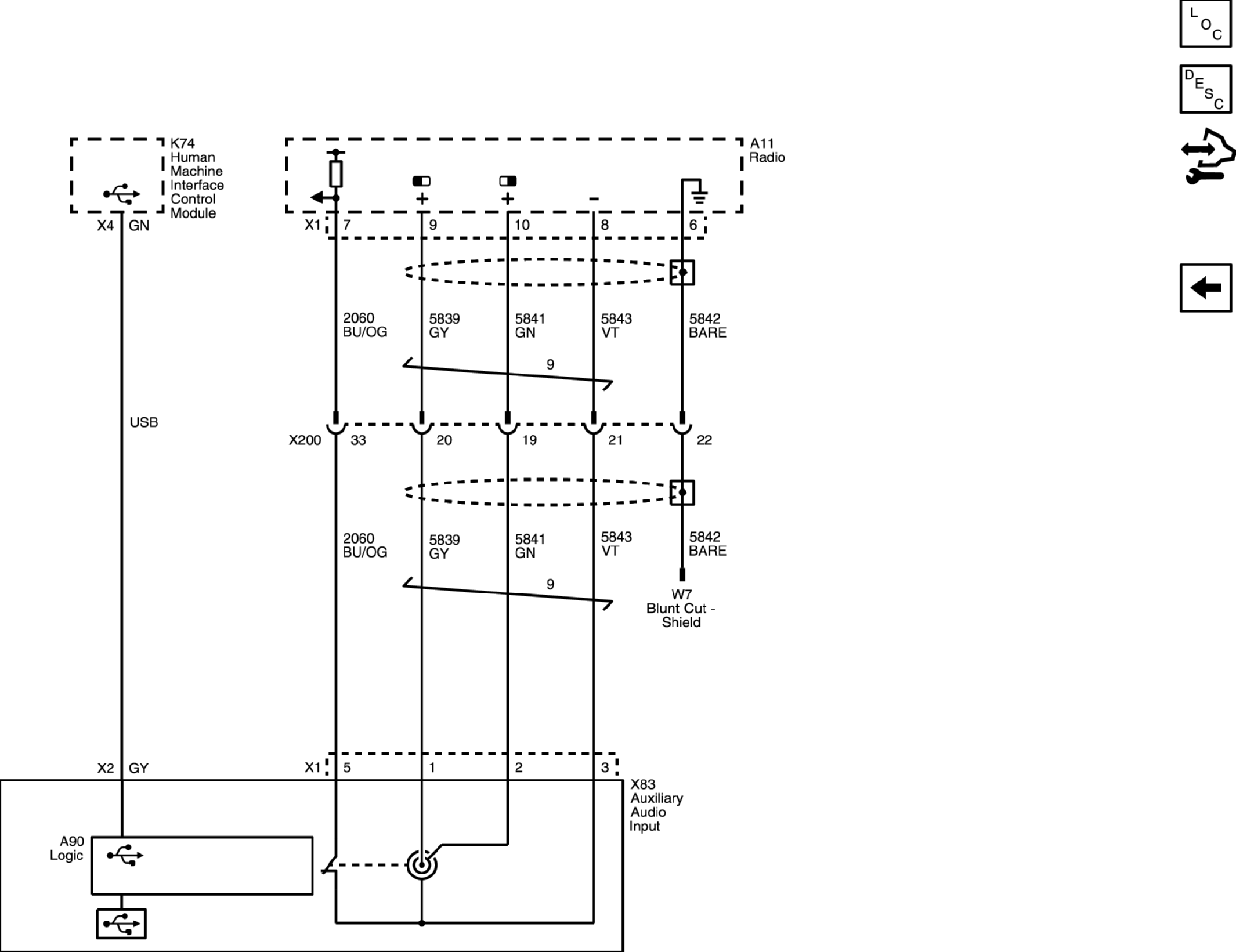

Audio Input (IO5/IO6)
Audio Input (IO5/IO6)
WARNING:
This page is about a different car, the 2018 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
