Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

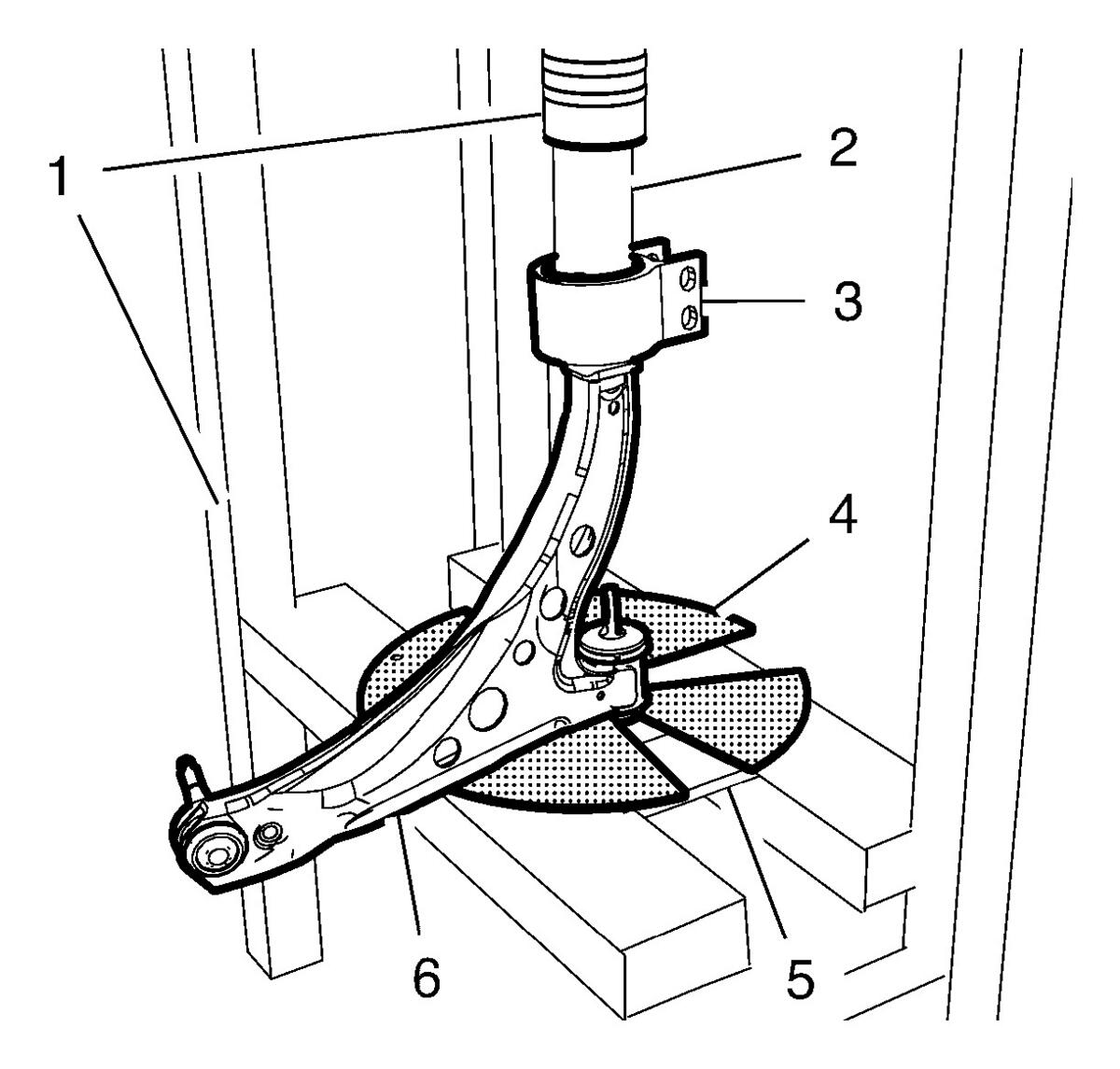

  1. GM3701771

    Position the CH-307-B  remover plate (4) into the hydraulic press (1).

  2. Position the front lower control arm (6) onto the CH-307-B  remover plate (4).
  3. Position suitable plates (5) under the CH-307-B  remover plate (4) for reinforcement.
  4. Position the front lower control arm rear bushing (3) onto the front lower control arm (6).
  5. Position a suitable pin (2) on the front lower control arm rear bushing (3)
  6. Install the front lower control arm rear bushing (3) onto the front lower control arm (6). Apply pressure using the hydraulic press.
  7. Lower Control Arm Replacement  - Install
