Removal Procedure

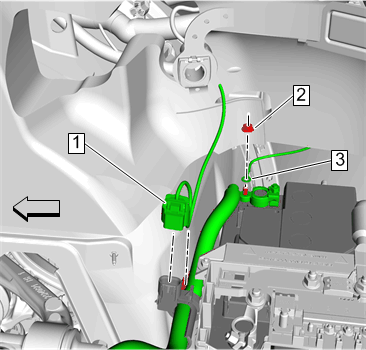

  1. GM4909983Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1)@Battery Current Sensor - Disconnect

  2. Body Harness Ground Fastener (2) - Remove
  3. Body Harness Terminal (3) - Remove

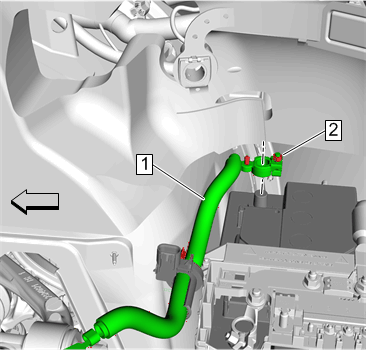

  4. GM4909986Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Before servicing any electrical component, the ignition key must be in the OFF or LOCK position and all electrical loads must be OFF, unless instructed otherwise in these procedures. If a tool or equipment could easily come in contact with a live exposed electrical terminal, also disconnect the negative battery cable. Failure to follow these precautions may cause personal injury and/or damage to the vehicle or its components.

    Battery Post Negative Cable Clamp Nut (2) - Loosen

  5. Battery Negative Cable (1) - Reposition away

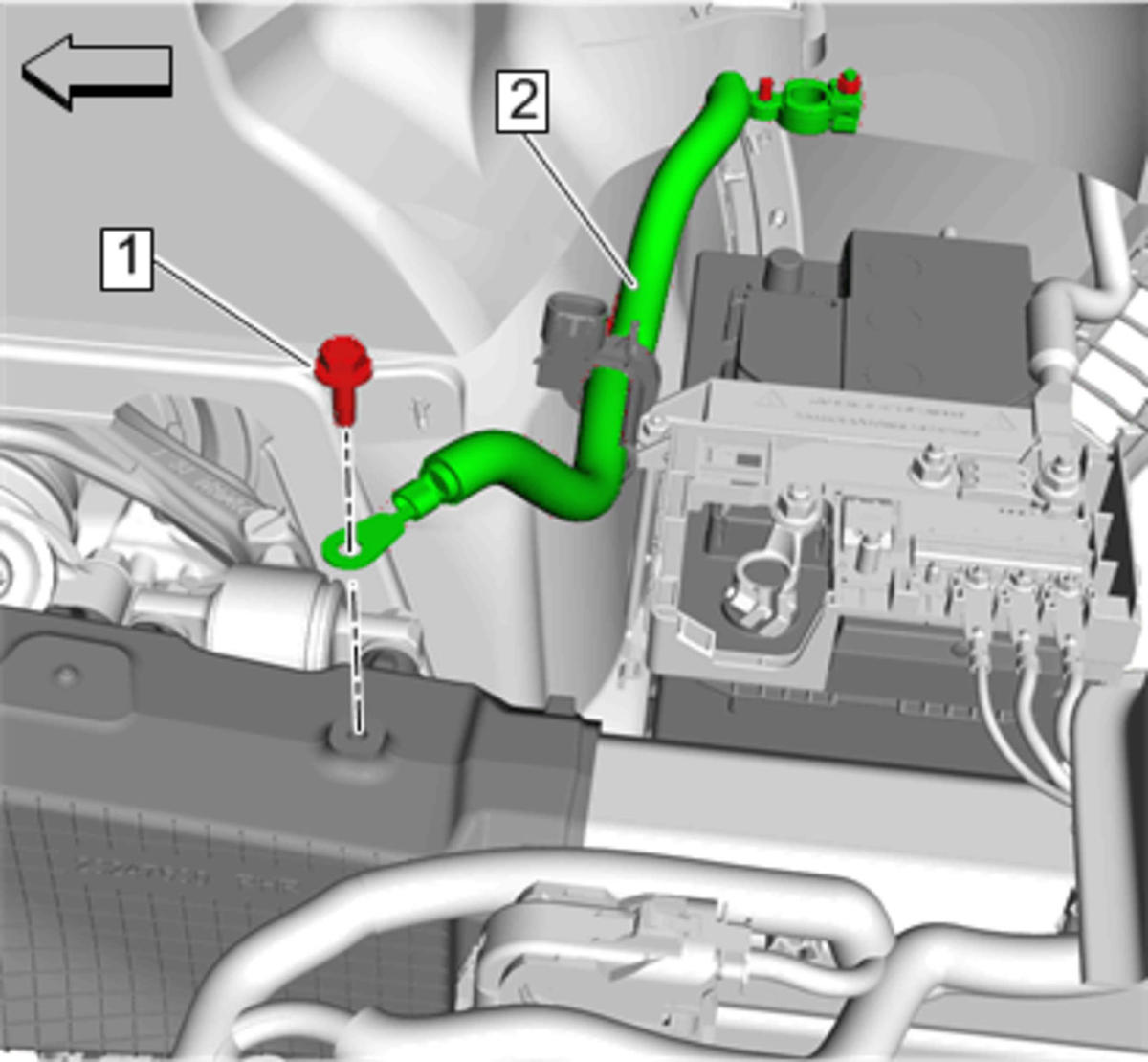

  6. GM4909987Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Ground Bolt (1) - Remove

  7. Battery Negative Cable (2) - Remove
