Radio Bracket Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

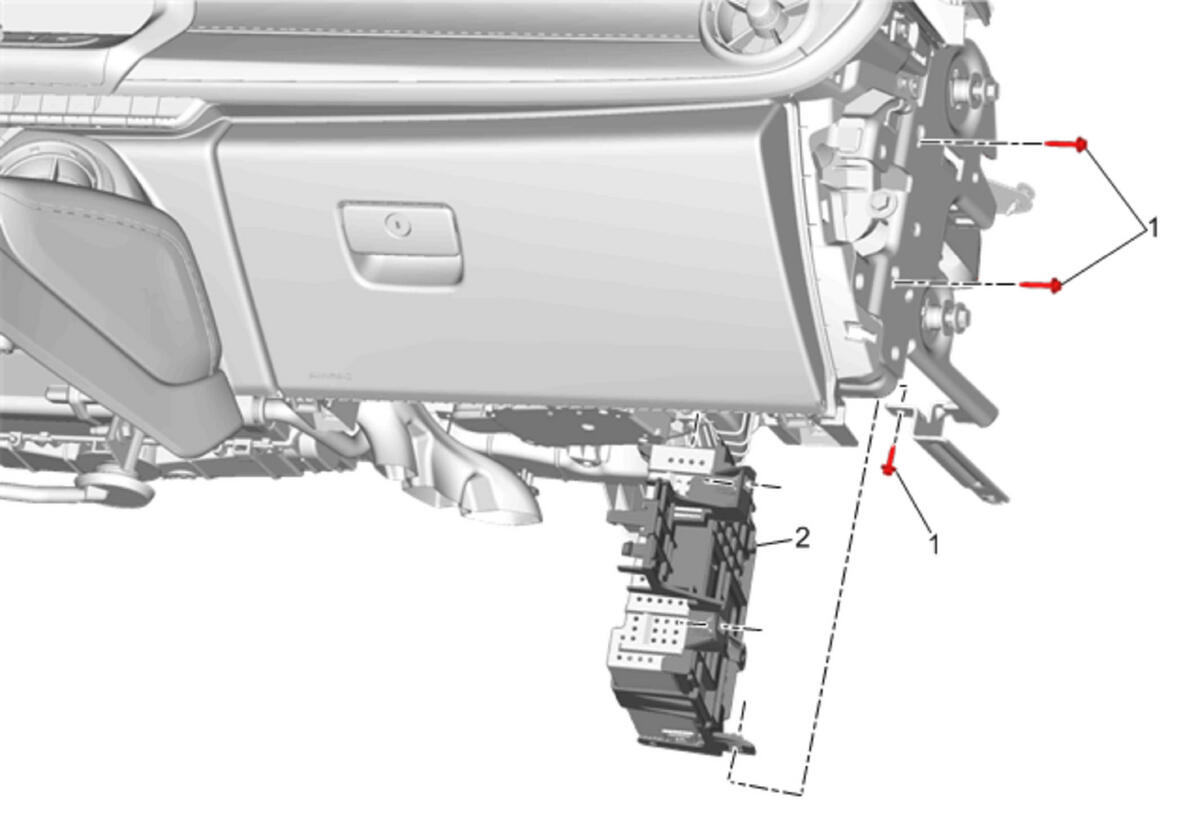

Callout	Component Name
Preliminary Procedures Instrument Panel Outer Trim Cover Replacement Multiuse Module Bracket Replacement - Instrument Panel
1	Radio Bracket Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary. Control Module References for programming and set-up information, if required.

Callout

Component Name

Preliminary Procedures

Instrument Panel Outer Trim Cover Replacement
Multiuse Module Bracket Replacement - Instrument Panel

Radio Bracket Bolt [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Radio Bracket

Procedure

Disconnect the electrical connectors.
Transfer components as necessary.
Control Module References for programming and set-up information, if required.
