Installation Procedure
WARNING: This page is about a different car, the 2018 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Position the fork of the sensor over the post on the brake pedal arm.

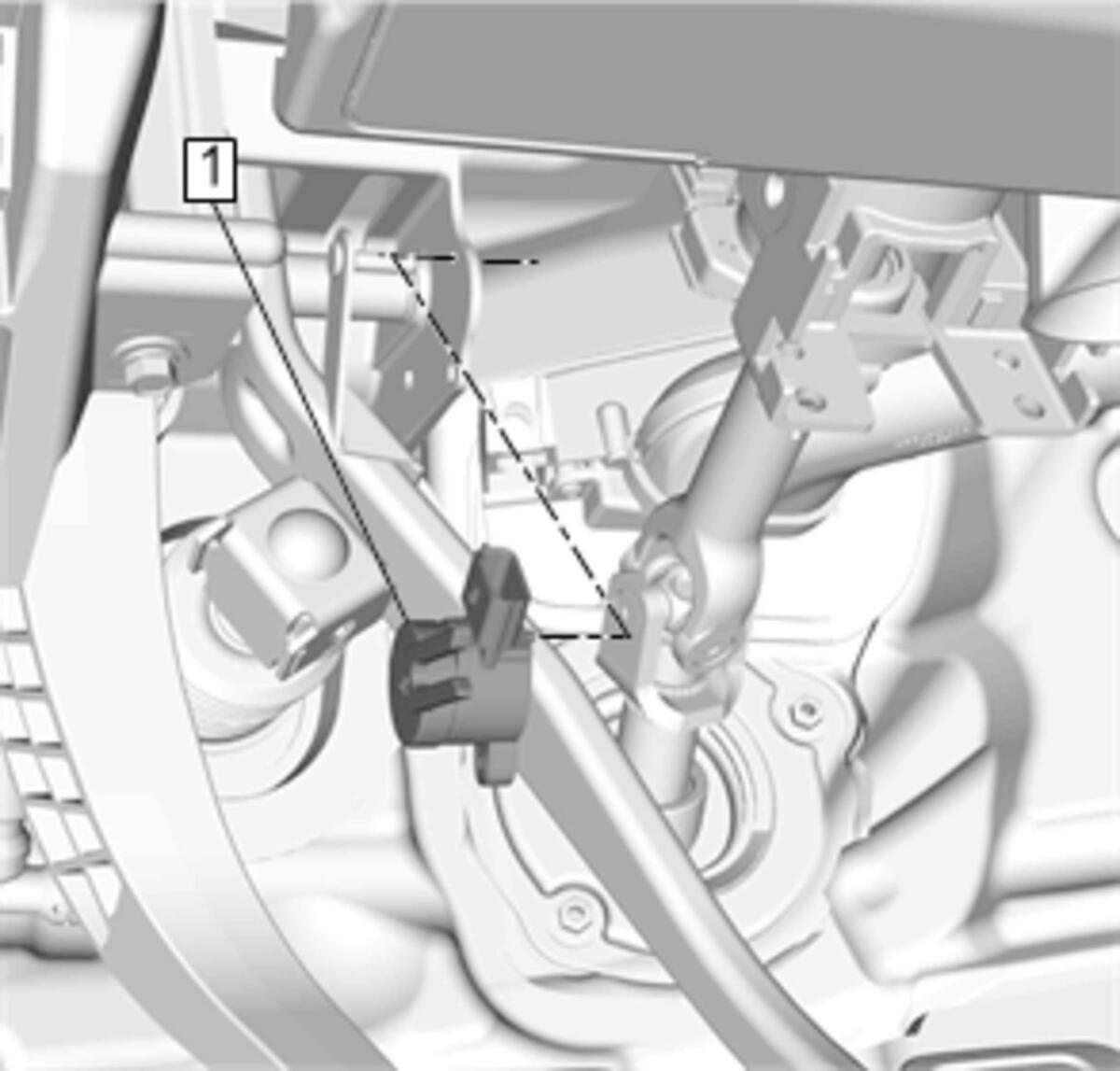

Brake Pedal Position Sensor (1) - Install
- CAUTION:

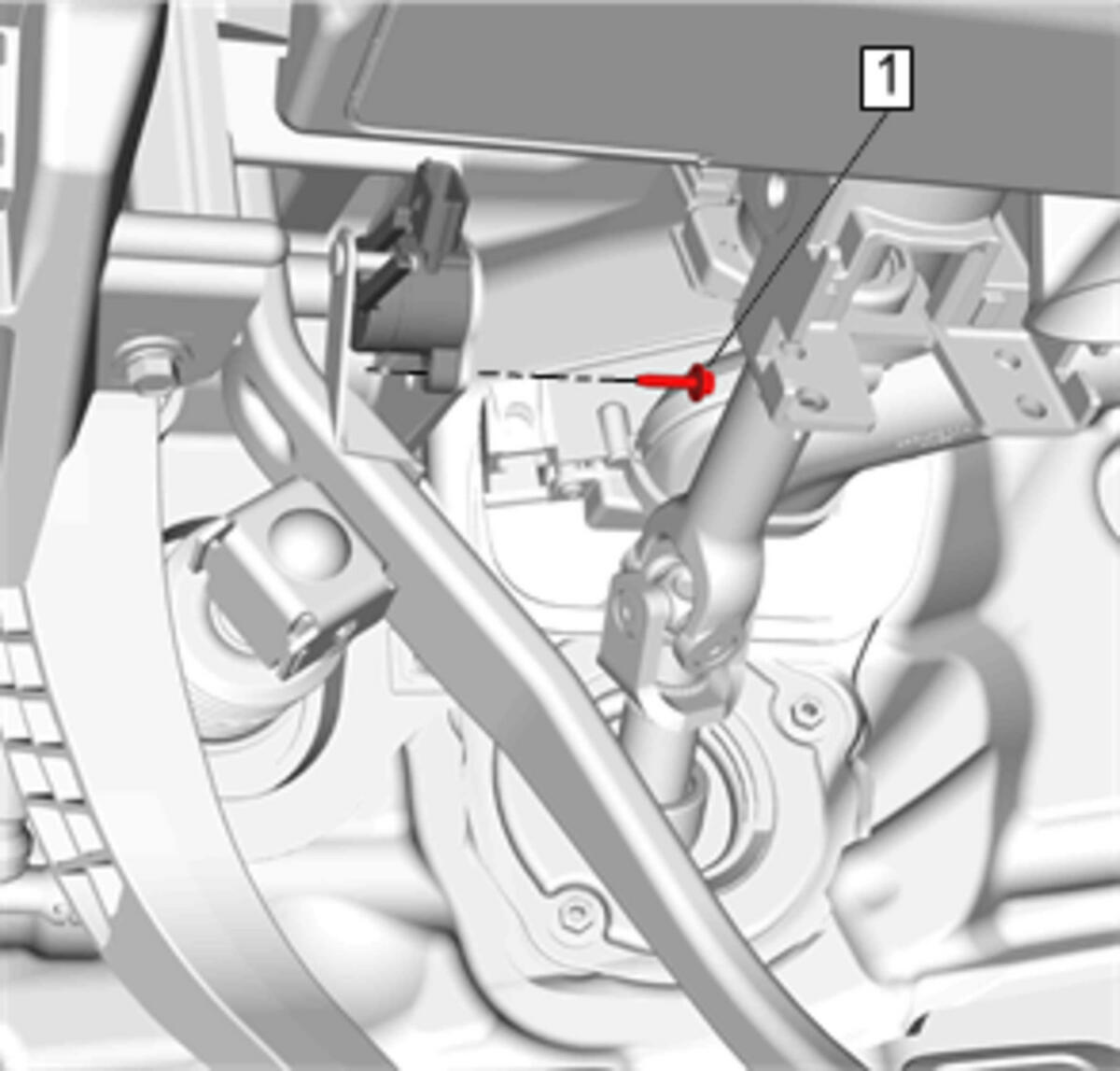

Brake Pedal Position Sensor Bolt (1) - Install and tighten 2.5 N.m (22 lb in)
- Brake Pedal Position Sensor Electrical Connector - Connect
- Calibrate the brake pedal position sensor. Brake Pedal Position Sensor Calibration
