High Frequency Antenna Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the headlining trim panel. Headlining Trim Panel Replacement NOTE: Only perform those steps that will lower the headlining trim panel enough to gain access to the part.

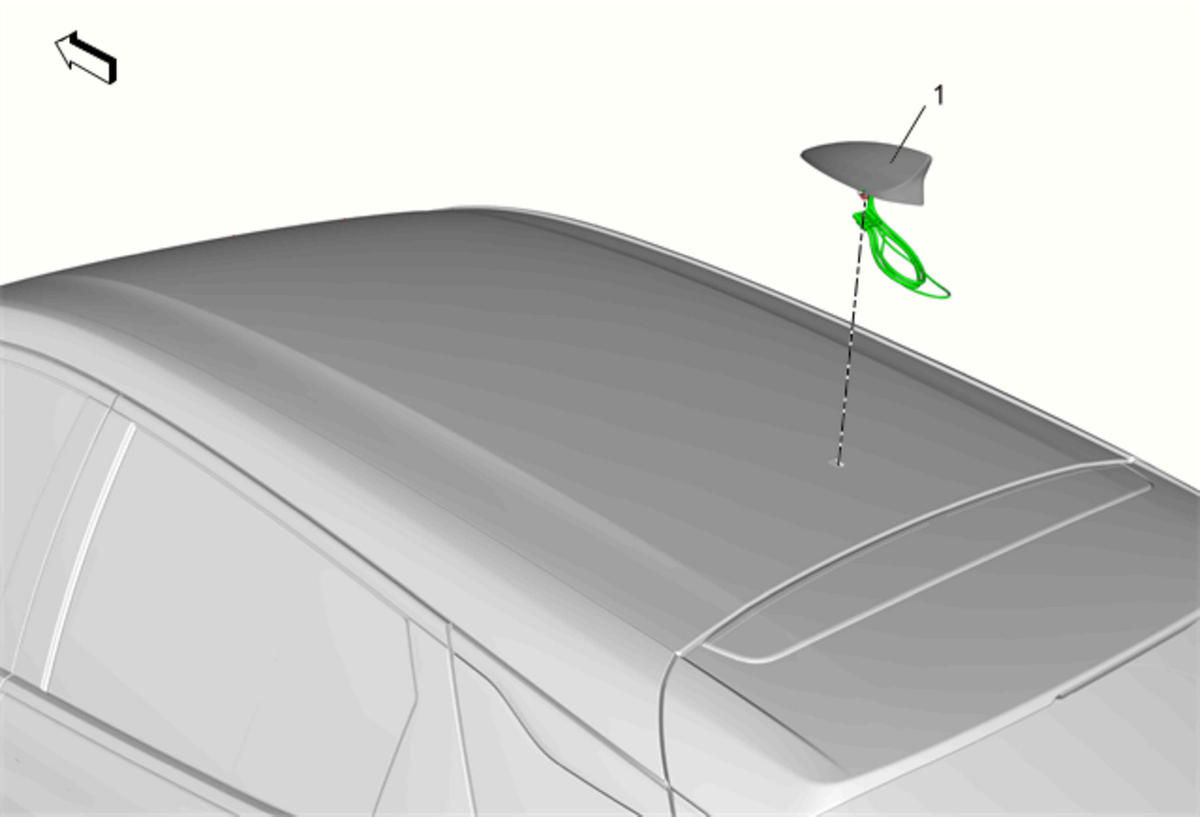

1	High Frequency Antenna CAUTION: Refer to Fastener Caution . Procedure Remove the bolt. Disconnect the electrical connectors. Disconnect the antenna cables. Release the retaining features and feed the wiring and cable up through the hole in the roof panel. Ensure that the antenna is straight while tightening. Tighten 9 N.m (80 lb in)

Callout

Component Name

Preliminary Procedure
Lower the headlining trim panel. Headlining Trim Panel Replacement

NOTE:

Only perform those steps that will lower the headlining trim panel enough to gain access to the part.

High Frequency Antenna

CAUTION:

Refer to Fastener Caution .

Procedure

Remove the bolt.
Disconnect the electrical connectors.
Disconnect the antenna cables.
Release the retaining features and feed the wiring and cable up through the hole in the roof panel.
Ensure that the antenna is straight while tightening.

Tighten
9 N.m (80 lb in)
