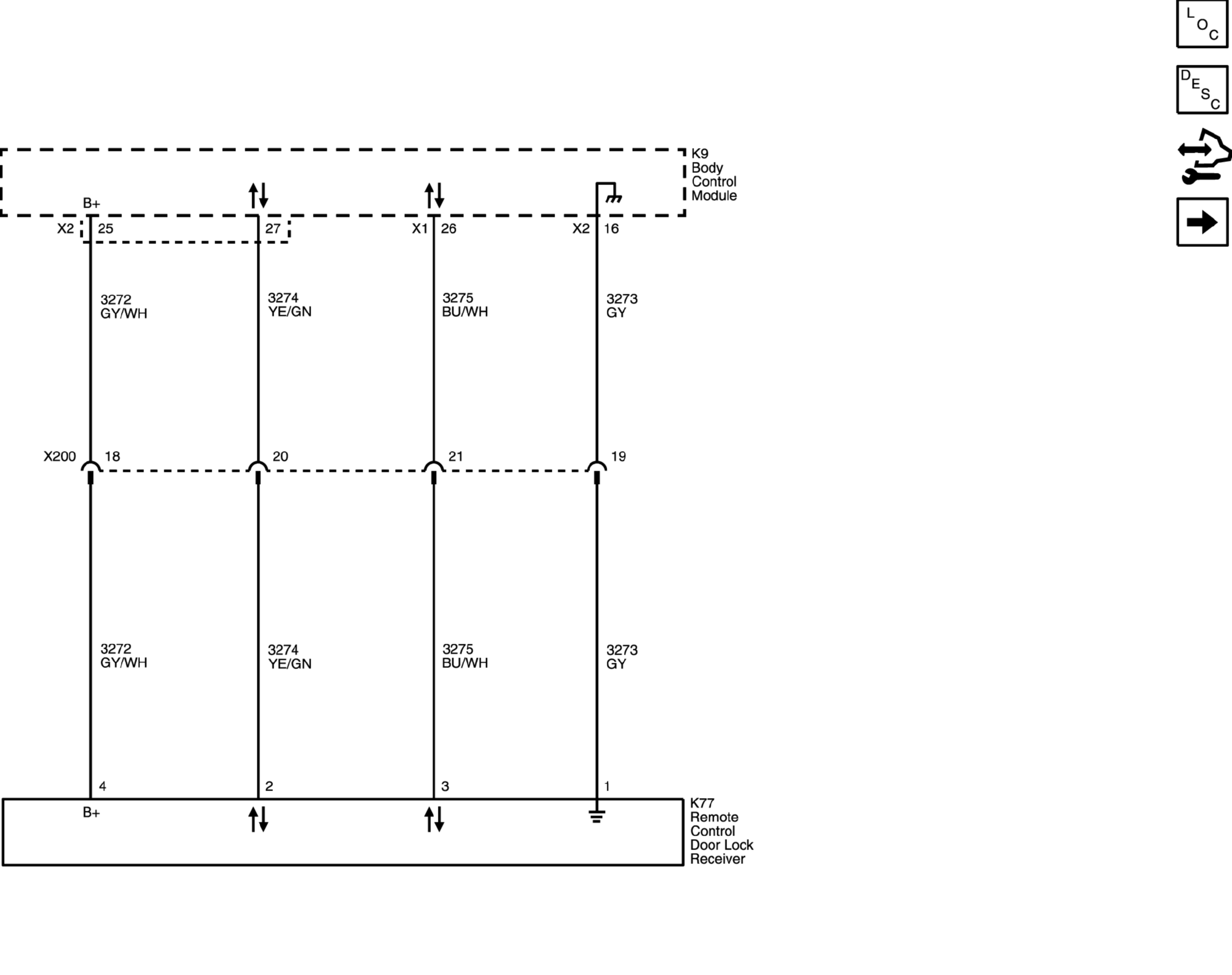

Home >> Chevrolet >> 2019 >> Bolt EV Premier >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Functions >> Wiring Schematic And Routing Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Active
