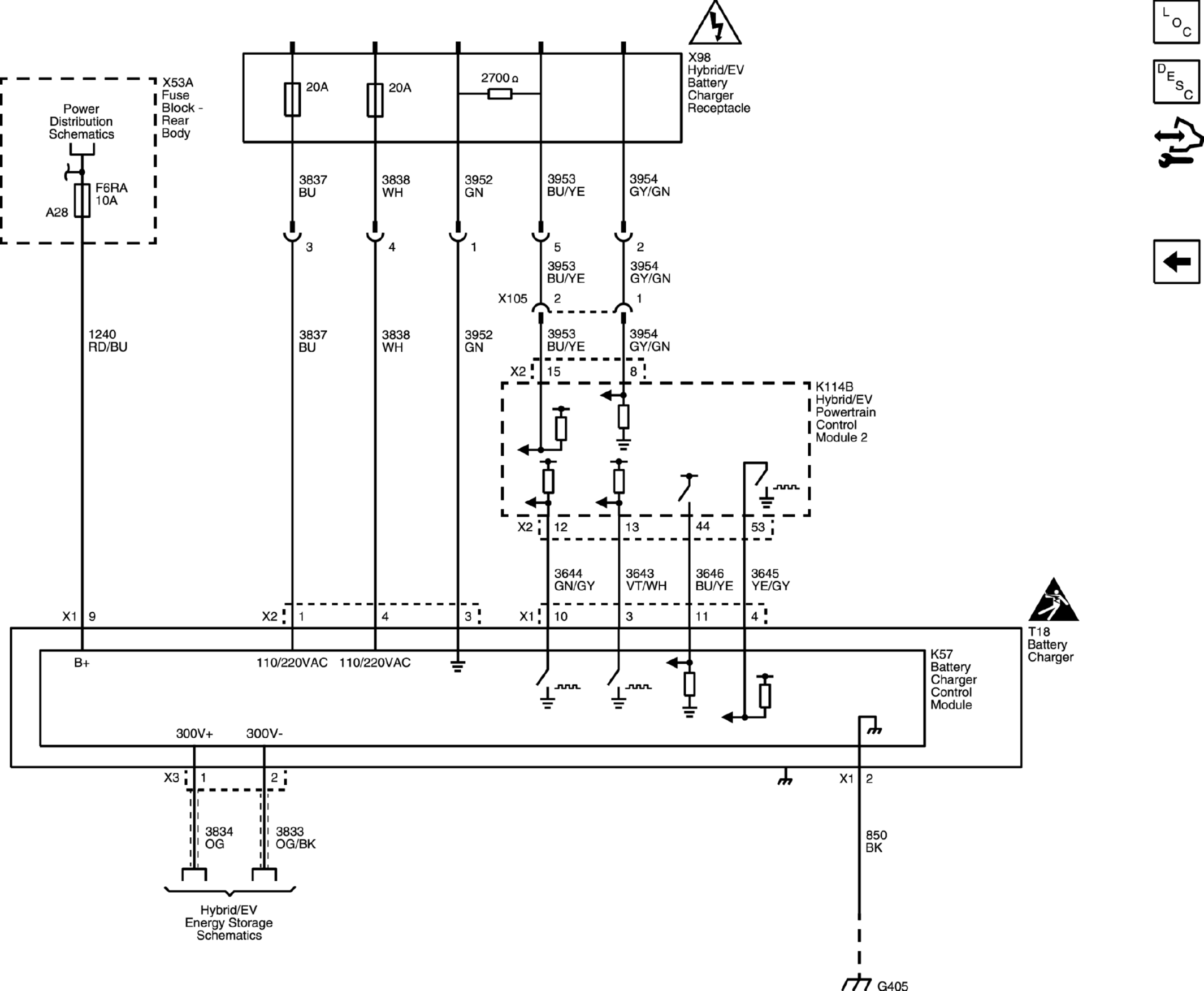

Home >> Chevrolet >> 2018 >> Volt Premier >> Repair and Diagnosis >> Electrical >> Charging Systems >> Plug-In Charging System >> Schematic Wiring Diagrams >> Plug-In Charging Wiring Schematics >> Battery Charger
