Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

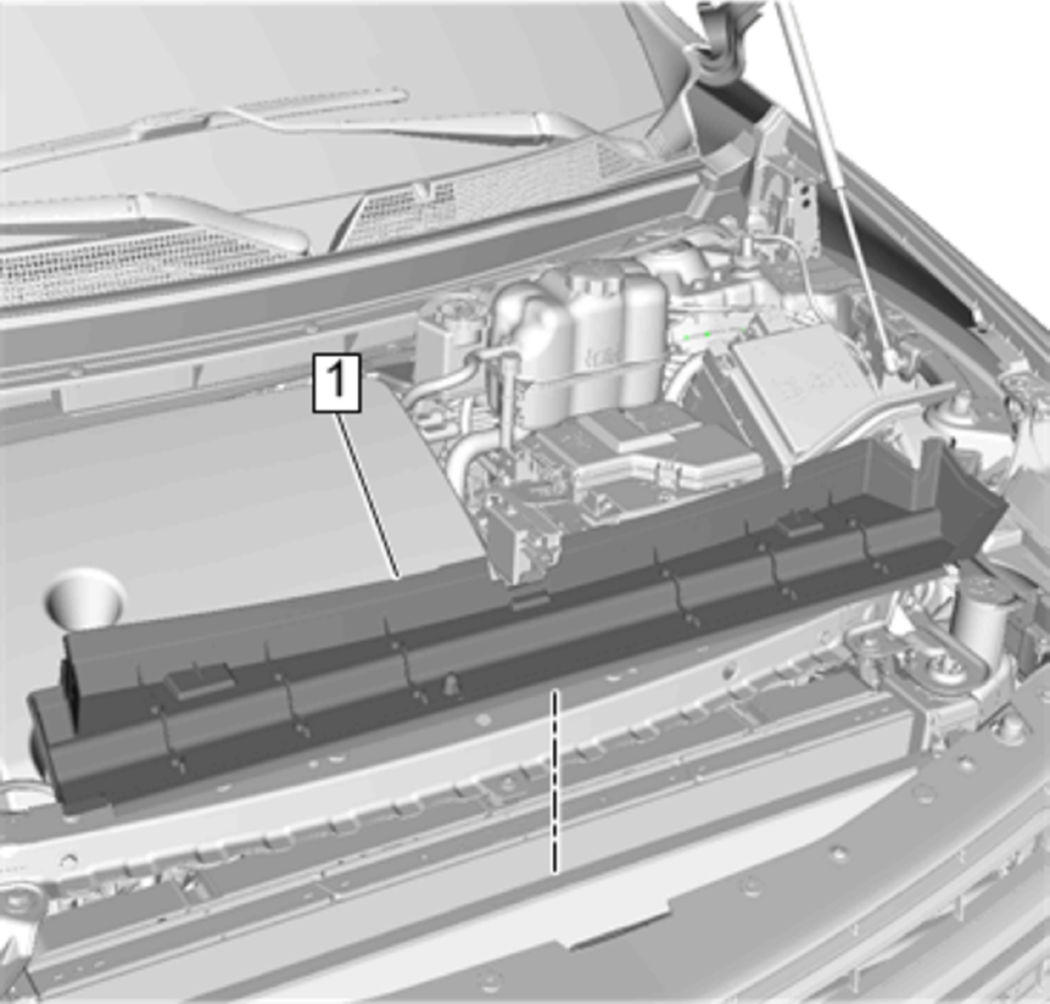

  1. GM4738320Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Baffle (1) - Install

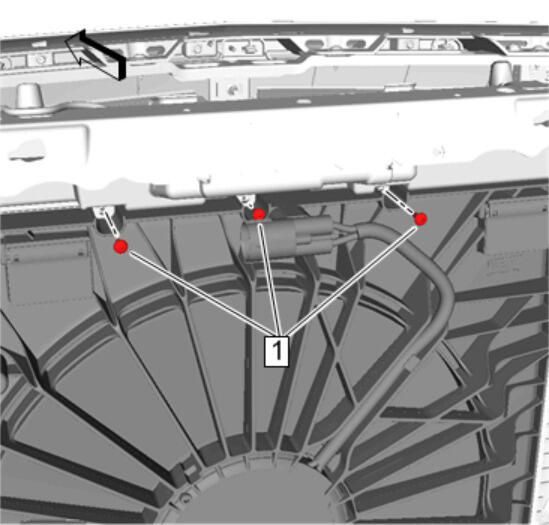

  2. GM4292986Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Radiator Air Baffle Bolt (1)@Engine Coolant Fan - Install and tighten [3x]

    9 N.m (80 lb in)

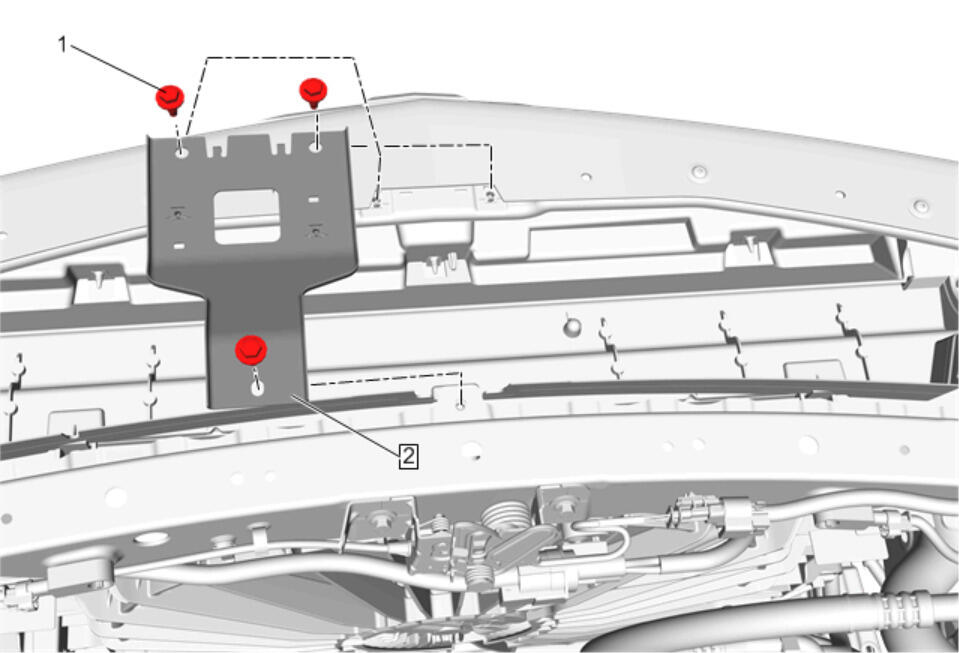

  3. GM4726608Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Support Brace-- Upper (2) - Install - Front Bumper Fascia Support Brace Replacement - Upper
