Home >> Chevrolet >> 2018 >> Traverse RS >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls And Fuel - 2.0L (LTG) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics >> Controlled/Monitored Subsystem References

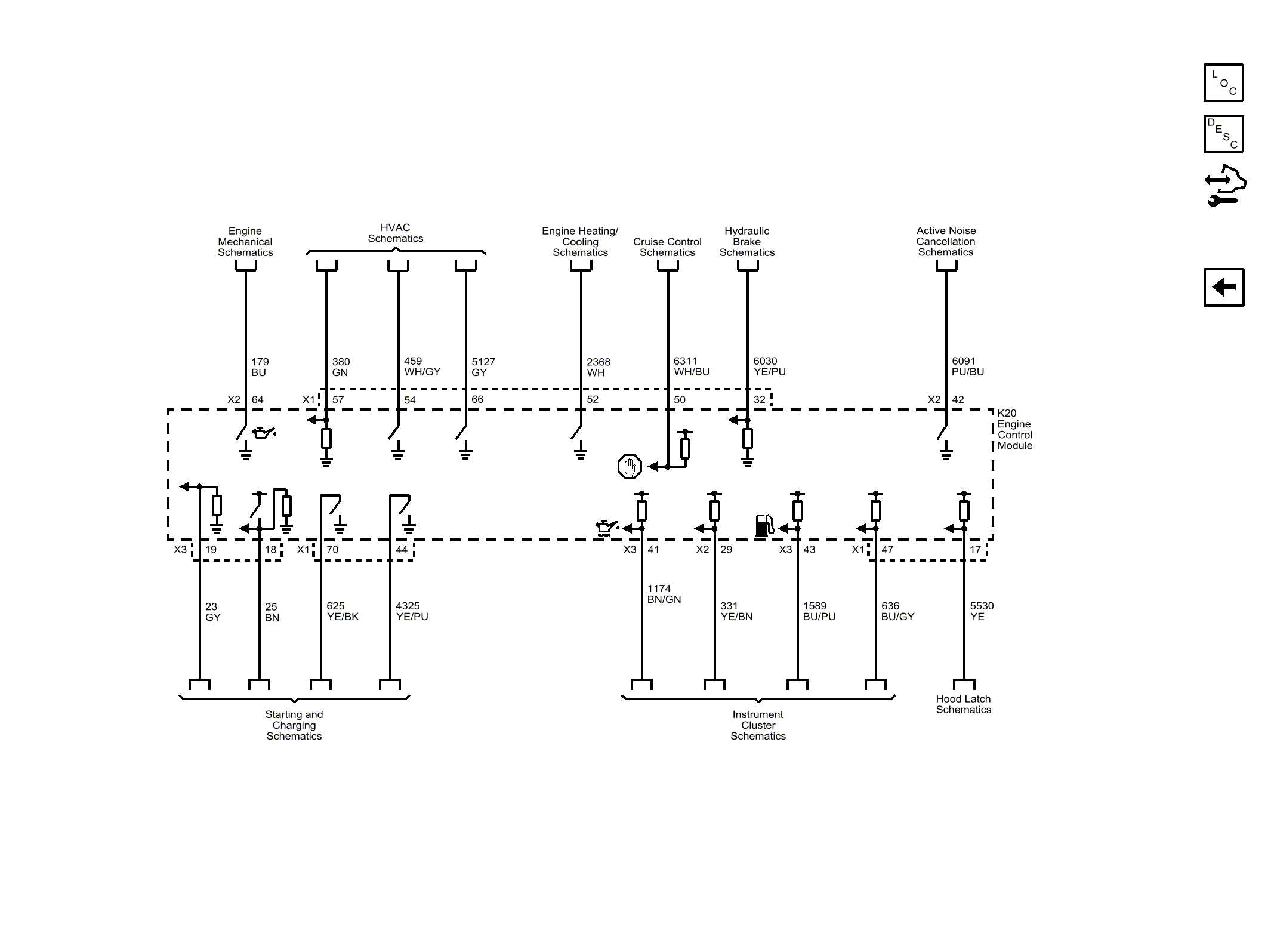

Controlled/Monitored Subsystem References

GM4744425
