Windshield Multifunction Sensor Mount Bracket Cover Replacement (With UHX)
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement (With UHX) |
|

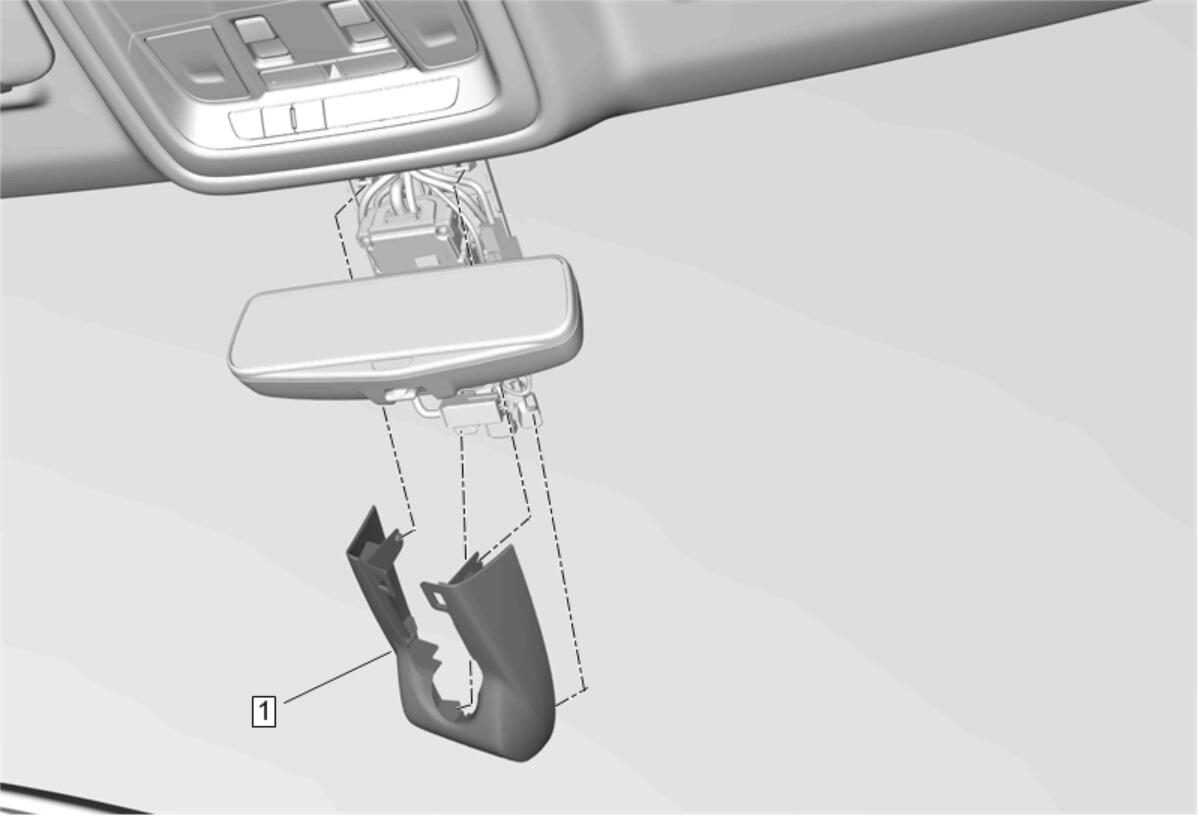

| 1 | Windshield Multifunction Sensor Mount Bracket Cover Procedure Pull downward to completely remove cover from windshield.
NOTE:
The windshield multifunction sensor mount bracket cover and cover insert has to be removed as a single unit from the windshield surface to prevent damage to mirror. |
