Windshield Wiper Blade Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

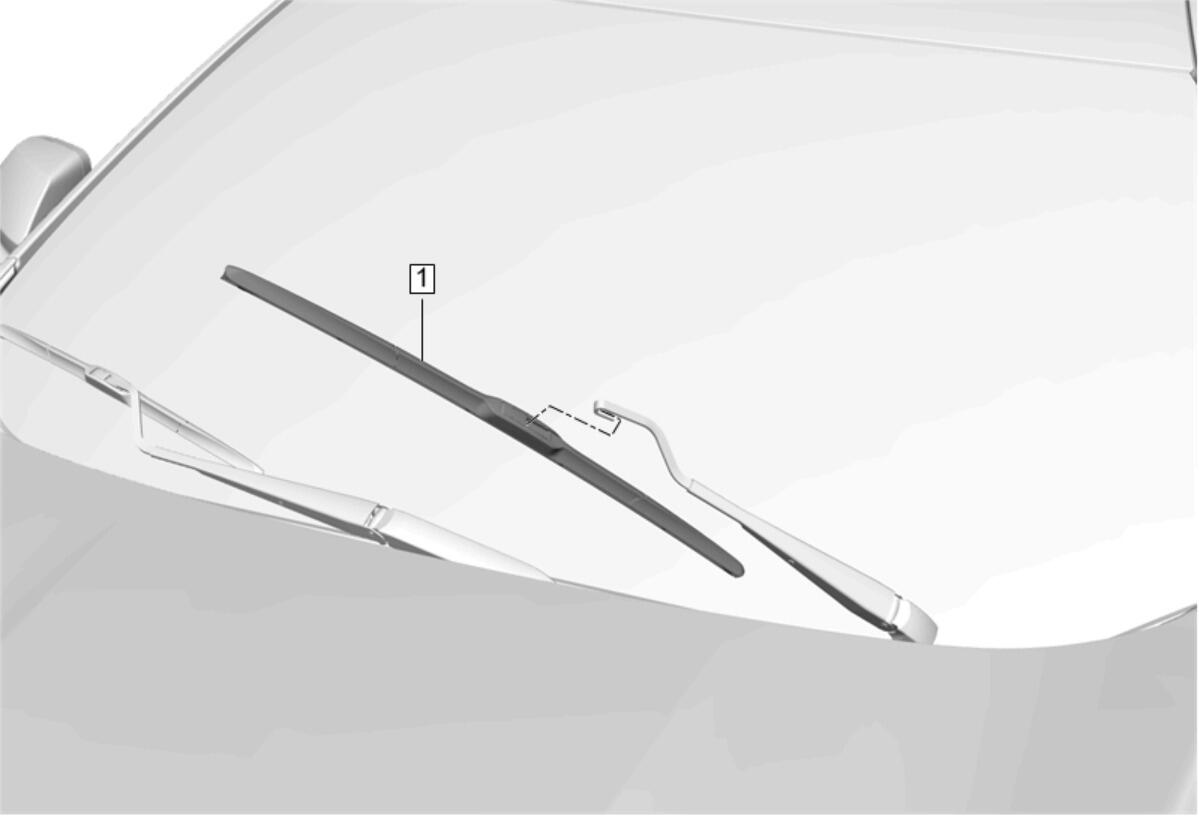

| Callout |
Component Name |
| 1 |
Windshield Wiper Blade Procedure
- Lift the windshield wiper arm from the windshield.
- Disengage the windshield wiper blade lock from the windshield wiper arm.
- Release the retention tab securing the windshield wiper blade to the windshield wiper arm.
- Remove the windshield wiper blade.
|
