Windshield Washer Pump Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Headlamp-Left Side - Remove - Front Headlamp Replacement Place a clean suitable drain pan under the windshield washer solvent container to recover the windshield washer solvent when the windshield washer pump hose is disconnected.

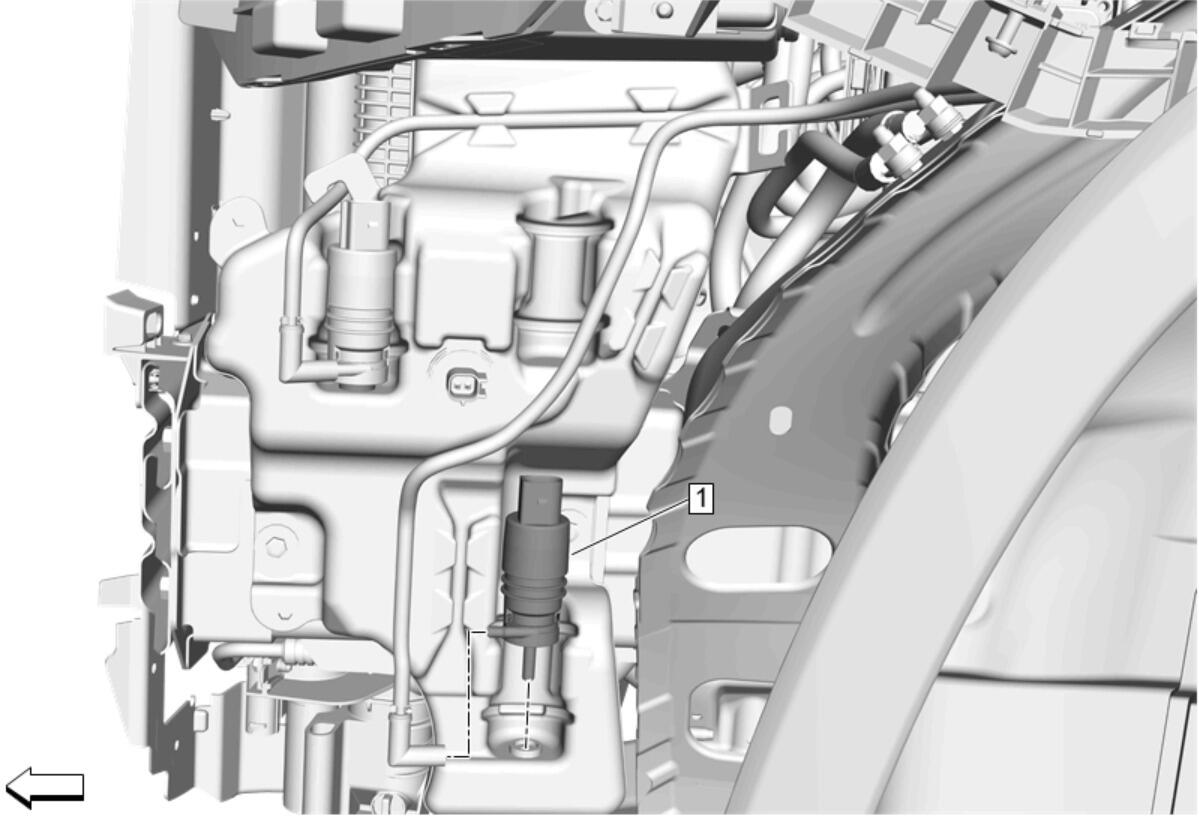

1	Windshield Washer Pump Procedure Disconnect the windshield washer pump hose. Disconnect the electrical connector. Using the appropriate tools, place under each side of the washer pump, twist and lift in opposite directions to disengage the windshield washer pump from the windshield washer solvent container and grommet.

Callout

Component Name

Preliminary Procedures

Headlamp-Left Side - Remove - Front Headlamp Replacement
Place a clean suitable drain pan under the windshield washer solvent container to recover the windshield washer solvent when the windshield washer pump hose is disconnected.

Windshield Washer Pump

Procedure

Disconnect the windshield washer pump hose.
Disconnect the electrical connector.
Using the appropriate tools, place under each side of the washer pump, twist and lift in opposite directions to disengage the windshield washer pump from the windshield washer solvent container and grommet.
