Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

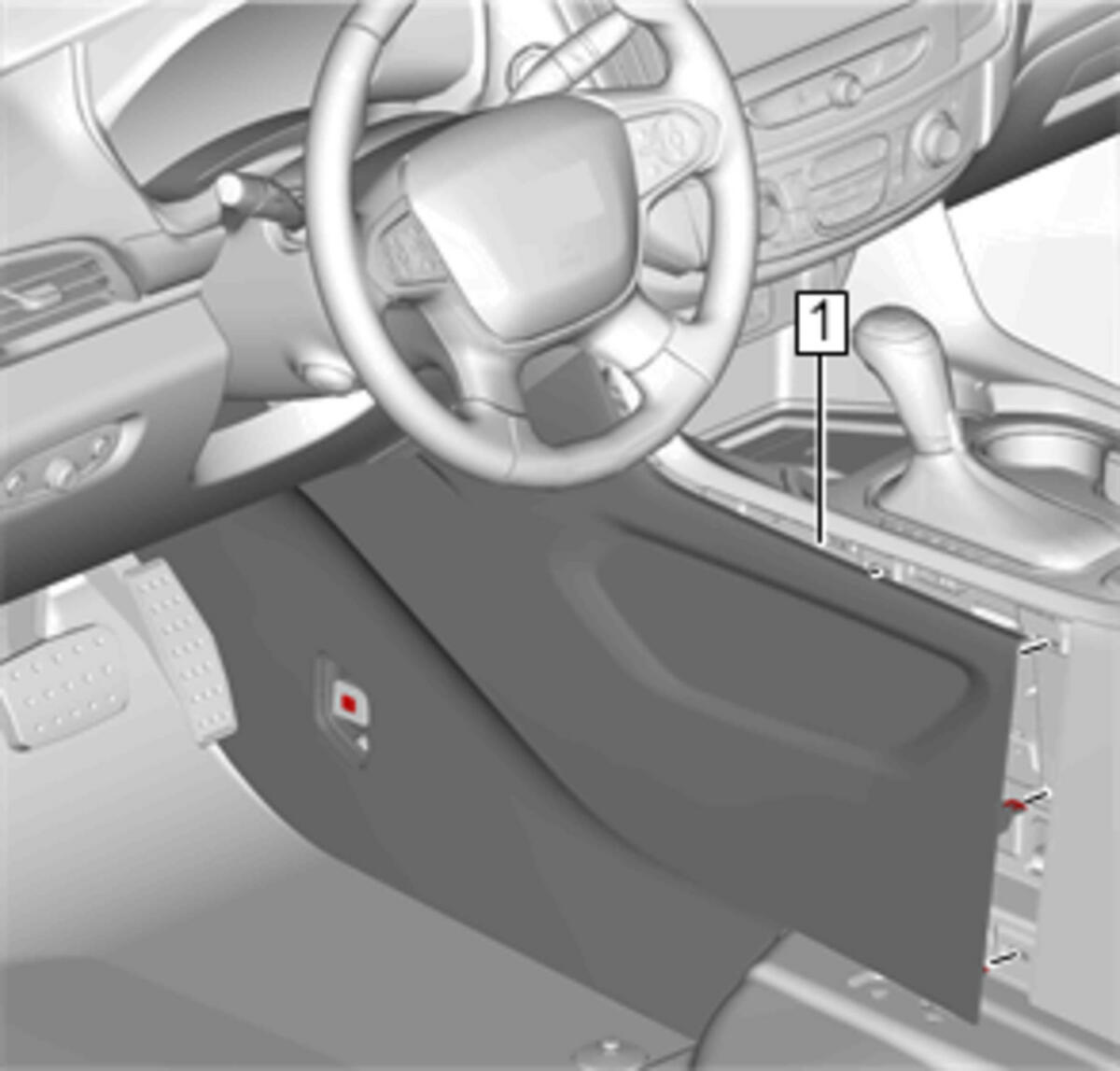

Insert the front floor console extension panel tab (1) into the instrument panel slot.
Courtesy of GENERAL MOTORS COMPANY

Working you way rearward engage the front floor console extension panel (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

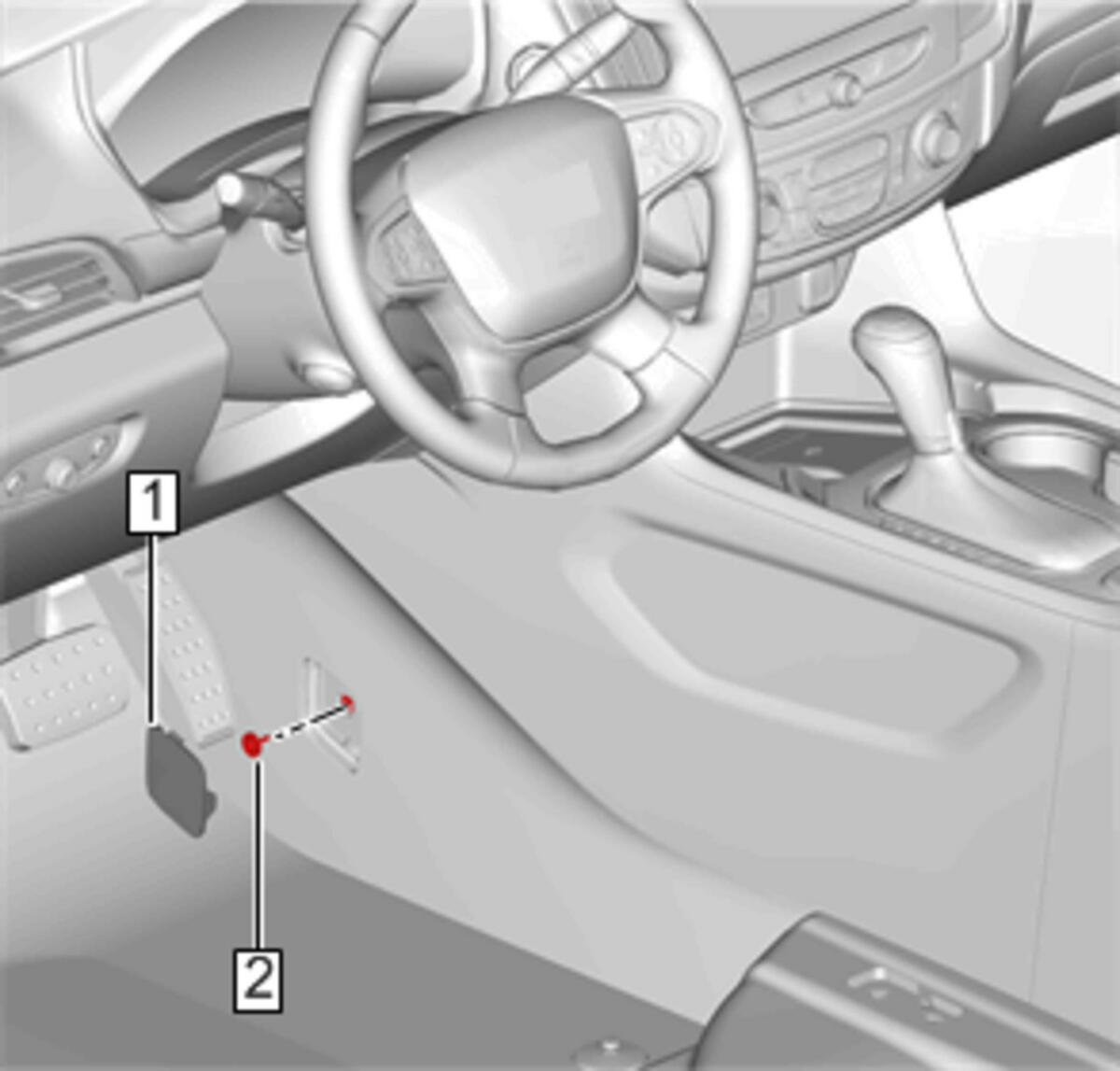

Front Floor Console Bolt@Body Control Module Bracket (2) - Install and tighten 2.5N.m (22 lb in)
Front Floor Console Bolt Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

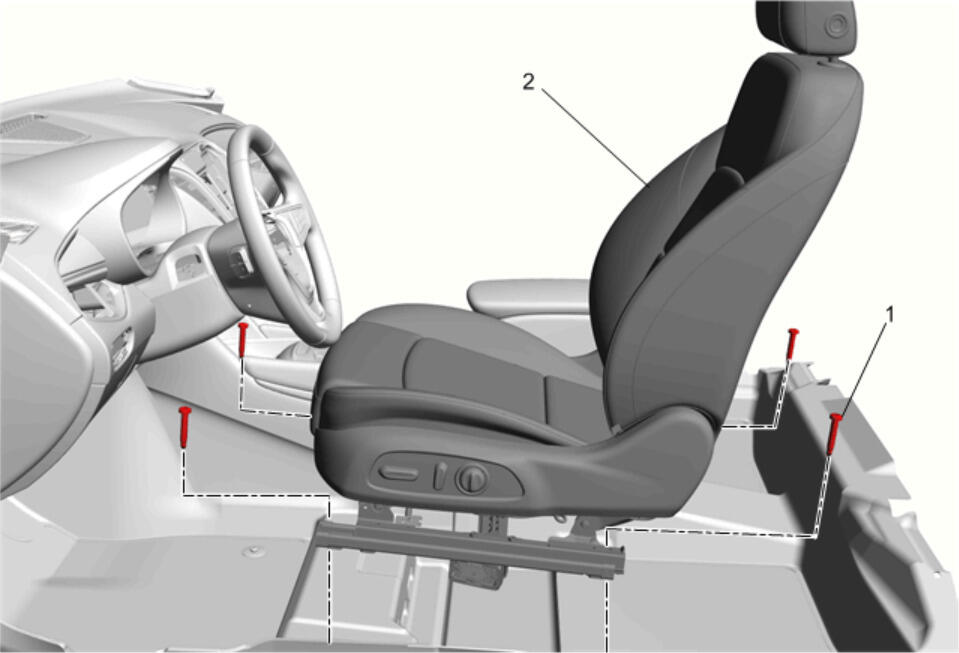

Front Seat (2) - Install - Front Seat Removal and Installation
