Front Floor Console Armrest Latch Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

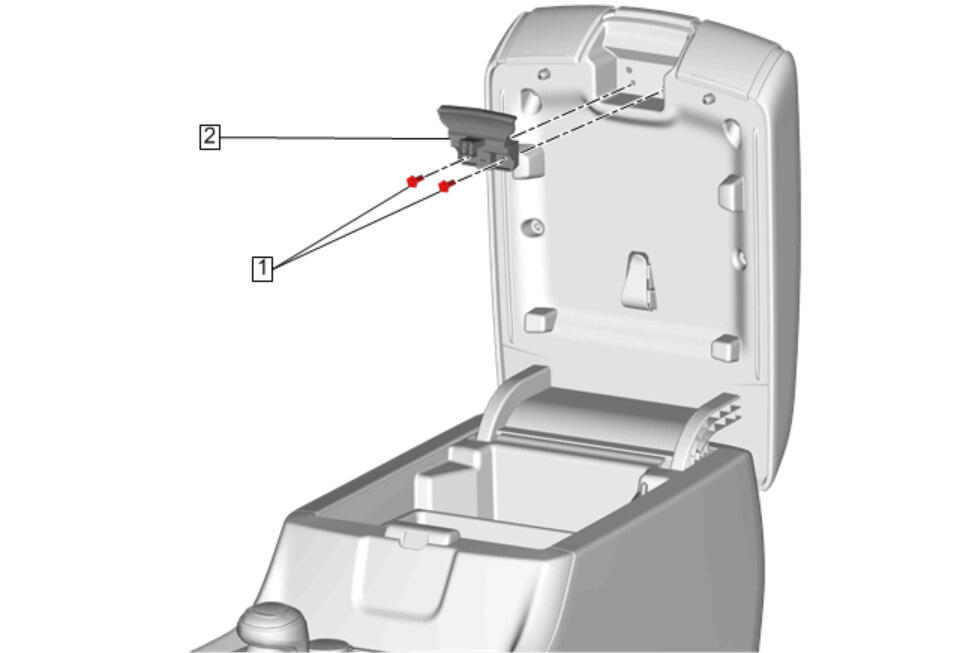

GM4751034Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the armrest cover.
1 Front Floor Console Armrest Latch Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front Floor Console Armrest Latch
