Knock Sensor Replacement - Bank 2 (FWD)

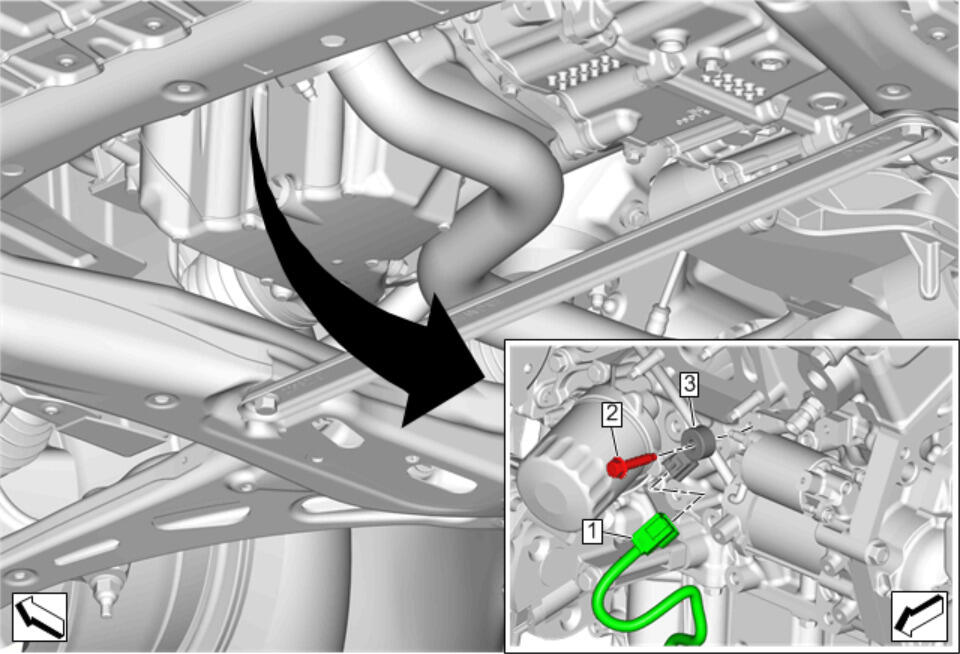

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle |
|
| 1 | Electrical Connector Procedure Disconnect the electrical connector. |
| 2 | Knock Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 3 | Knock Sensor |
