Ignition Coil Replacement - Bank 1

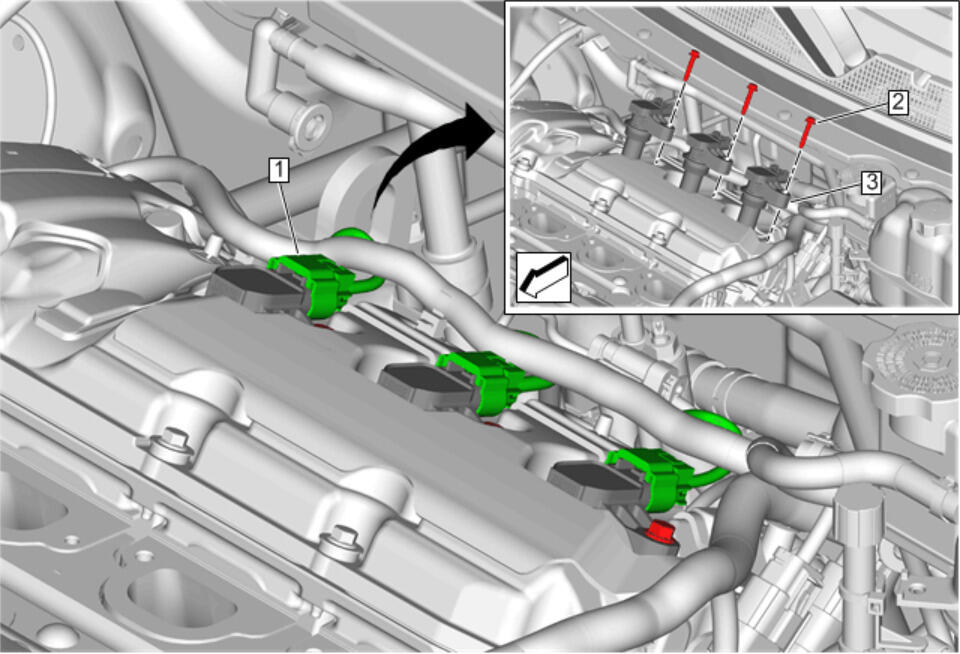

| Callout | Component Name |
|---|---|
| Preliminary Procedure Upper Intake Manifold Replacement |
|
| 1 | Electrical Connector [3x] Procedure Disconnect the electrical connectors. |
| 2 | Ignition Coil Bolt [3x]
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Ignition Coil [3x] |
