Fuel Pressure Sensor Replacement - Fuel Feed Pipe (AWD)

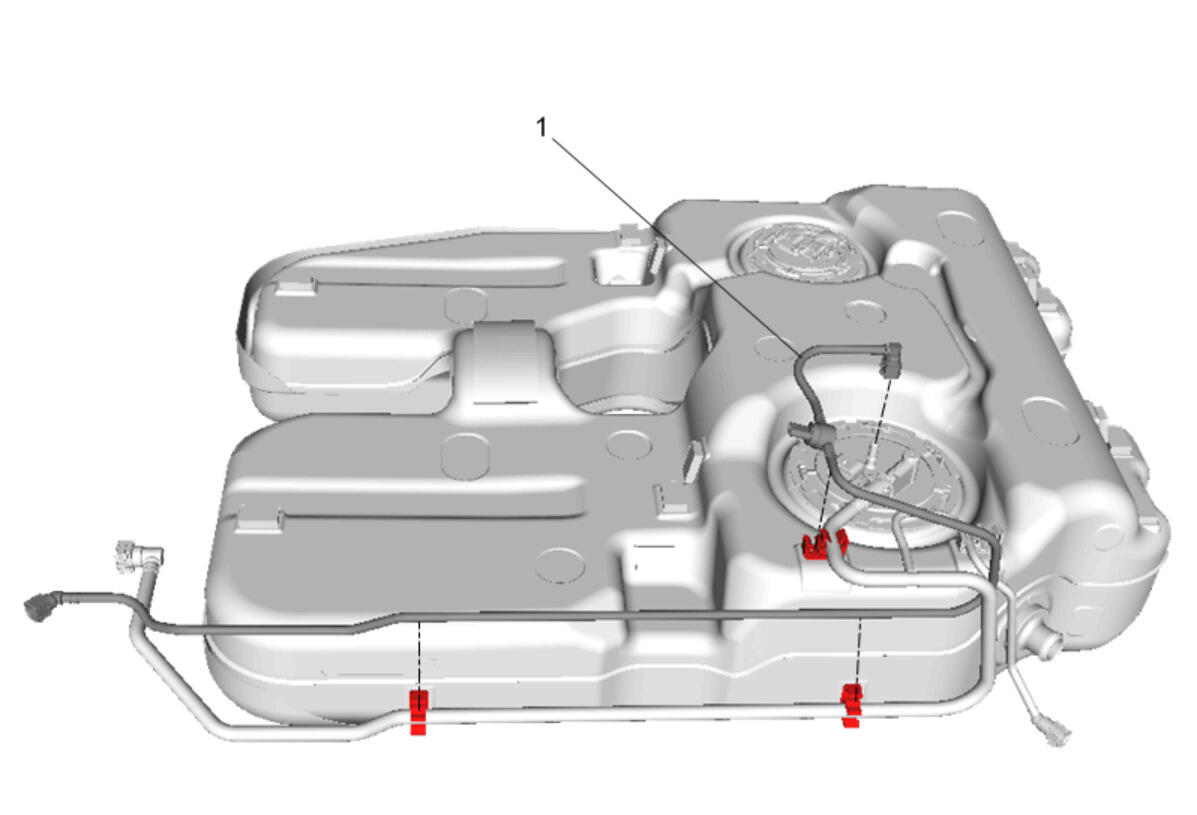

GM4293509
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Fuel Tank Replacement (AWD)
1 Fuel Pressure Sensor
NOTE:

Fuel pressure sensor is serviced as part of fuel feed pipe assembly.

Procedure

  1. Disconnect the electrical connector.
  2. Disconnect the fuel feed pipe from the fuel tank fuel pump module and remove from retainers. Plastic Collar Quick Connect Fitting Service
