Camshaft Position Sensor Replacement - Bank 2 (Left Side) Intake

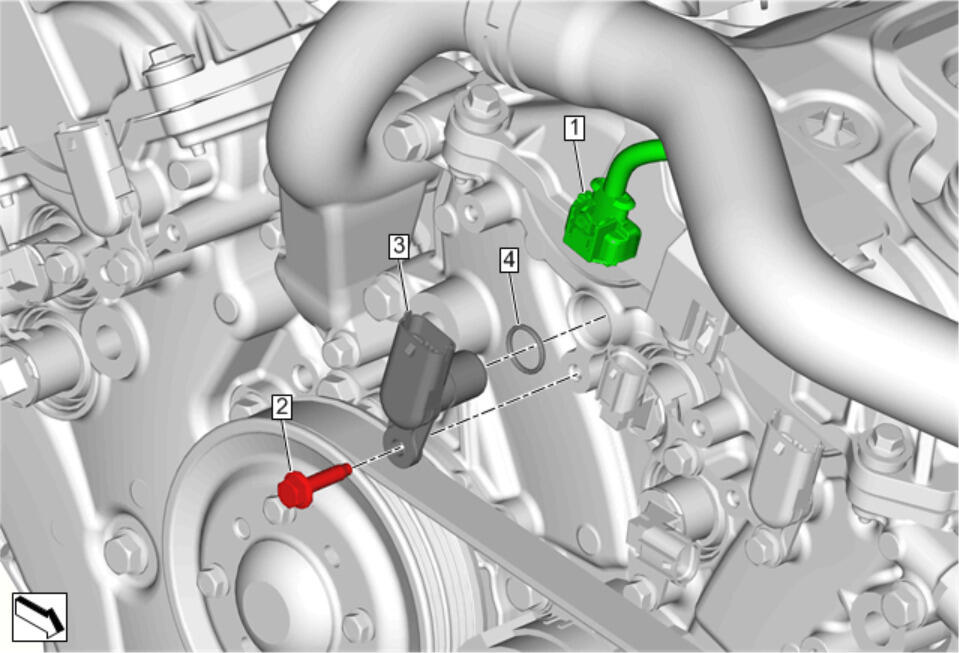

Callout	Component Name
Preliminary Procedure  Engine Mount Bracket Replacement - Right Side
1	Electrical Connector Procedure  Disconnect the electrical connector.
2	Camshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
3	Camshaft Position Sensor
4	Camshaft Position Sensor Seal NOTE: ALWAYS install the camshaft position sensor seal supplied with the NEW camshaft position sensor. If reinstalling the camshaft position sensor, inspect the camshaft position sensor seal and replace as necessary. Lubricate the camshaft position sensor seal with clean engine oil prior to installing the camshaft position sensor.
