Radio Speaker Amplifier Replacement

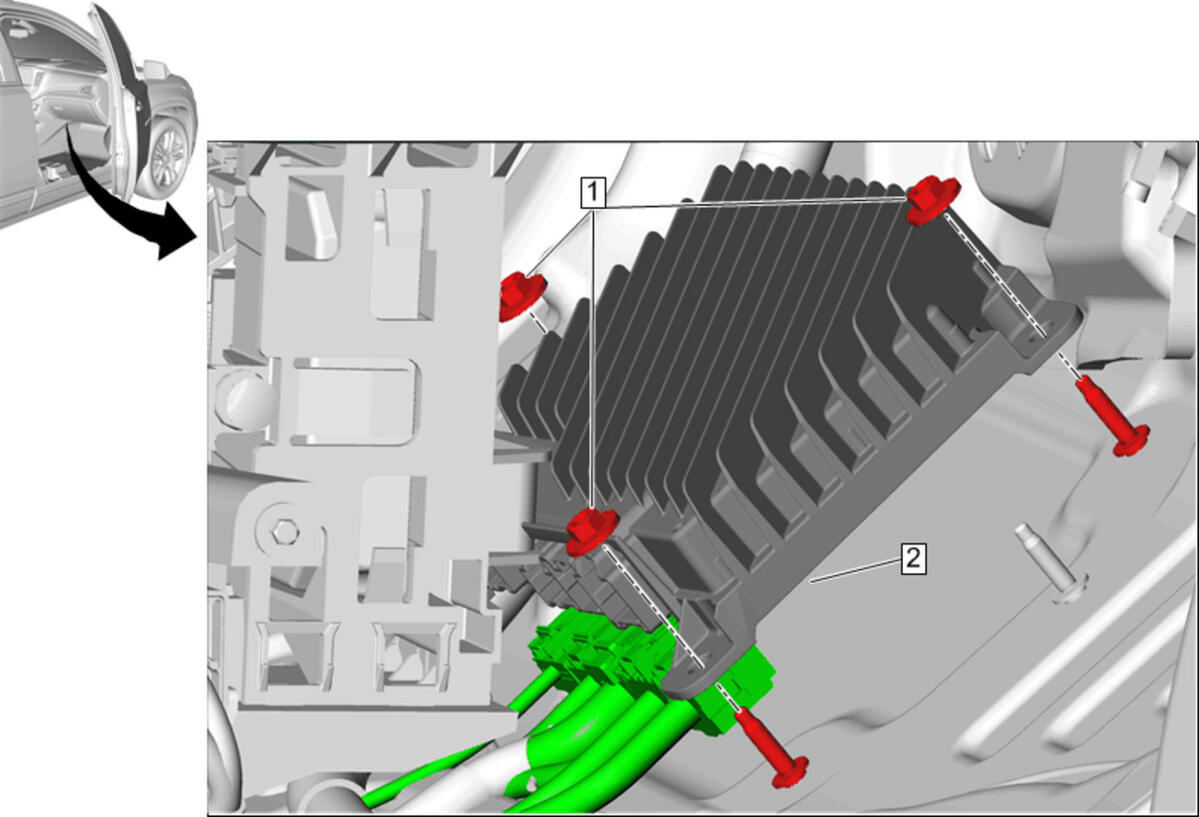

Callout	Component Name
Preliminary Procedures Front Floor Console Extension Panel Replacement - Left Side Front Floor Console Extension Panel Replacement - Right Side
1	Radio Speaker Amplifier Nut [3x] CAUTION: Fastener Caution Tighten 6 N.m (53 lb in)
2	Radio Speaker Amplifier Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedures

Radio Speaker Amplifier Nut [3x]

CAUTION:

Tighten
6 N.m (53 lb in)

Radio Speaker Amplifier

Procedure
