Radio Control Switch Replacement - Steering Wheel (Left Rear)

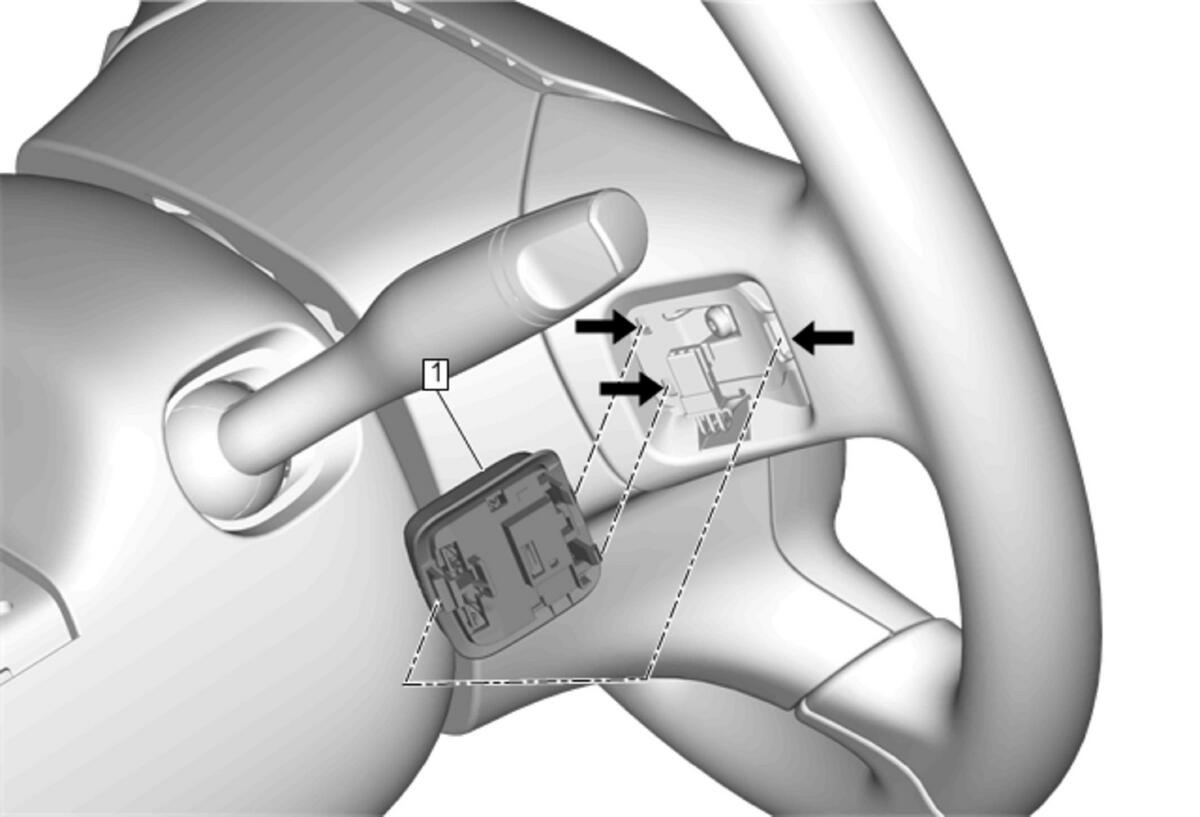

GM4747700
Callout Component Name
1 Radio Control Switch - Steering Wheel

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Disconnect the electrical connector.
NOTE:

Use a flat bladed plastic tool to release the steering wheel radio control switch retaining tabs from the bracket attached to the steering wheel.
