Rear Window Defogger System Components
The rear window defogger system consist of the following components:
- The HVAC control module
- The body control module (BCM)
- The rear defogger relay
- The rear window grid
- Driver outside rearview mirror
- Passenger outside rearview mirror
- 30A fuse

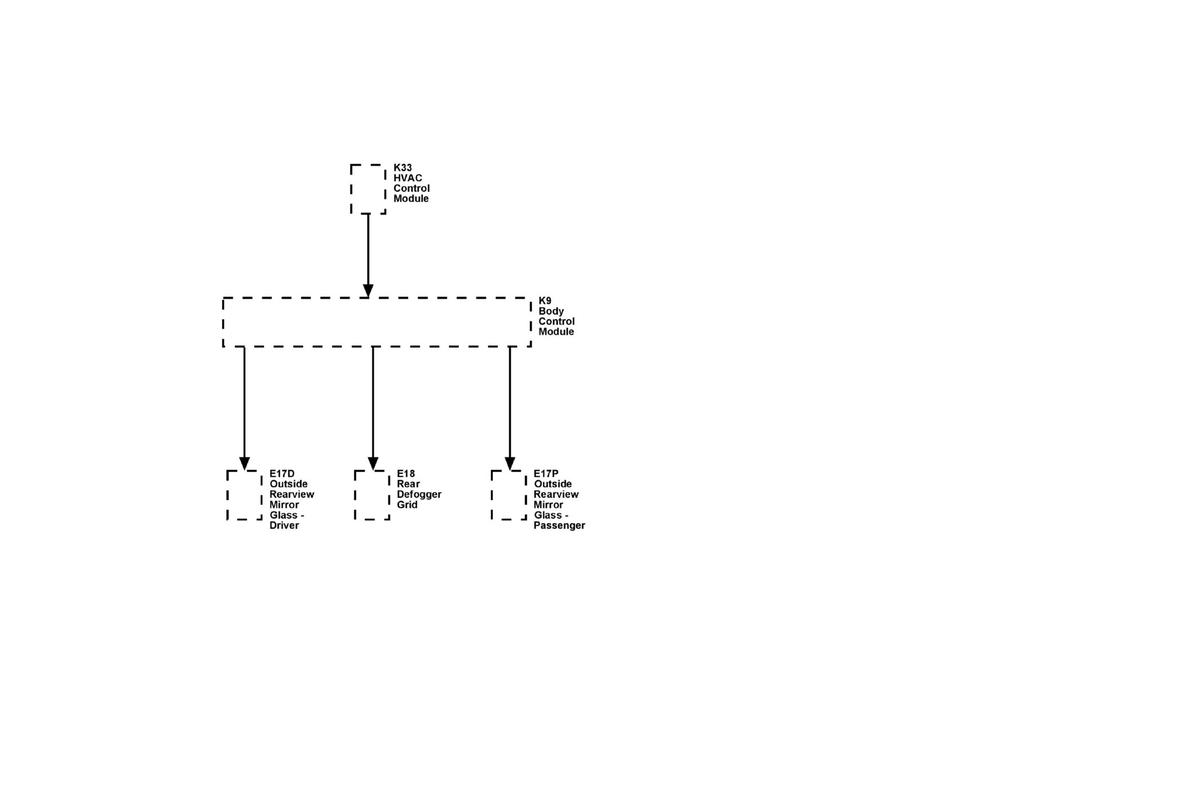

| Callout | Component Name |
|---|---|
| E17D | E17D Outside Rearview Mirror Glass - Driver |
| E18 | E18 Rear Defogger Grid |
| E17P | E17P Outside Rearview Mirror Glass - Passenger |
| K33 | K33 HVAC Control Module |
| K9 | K9 Body Control Module |
