K69 Transfer Case Control Module X2
WARNING: This page is about a different car, the 2018 GMC Canyon and 2018 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

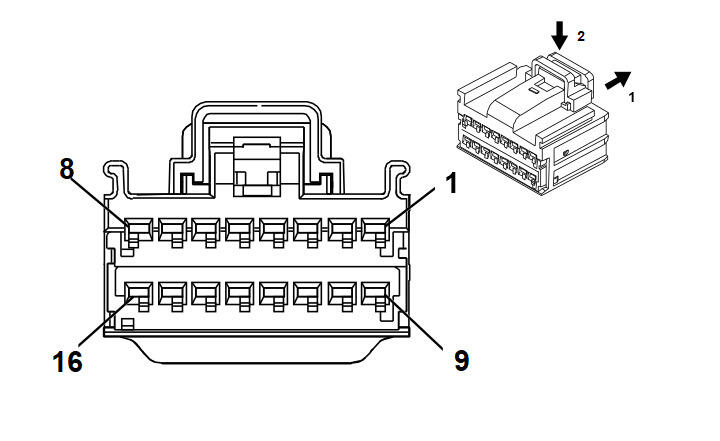

Connector Part Information
- Harness Type: Body
- OEM Connector: 15512506
- Service Connector: 13591061
- Description: 16-Way F 1.5 OCS Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13576369 |
J-35616-14 (GN) |
J-38125-560 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
VT/WH |
1565 |
4 LO Indicator Control |
I |
- |
| 4 |
0.35 |
VT/GN |
1739 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
VT/YE |
5985 |
Accessory Wakeup Serial Data |
I |
- |
| 7 |
0.5 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
I |
- |
| 8 |
0.5 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
I |
- |
| 9 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
GY/GN |
1561 |
AWD Indicator Control |
I |
- |
| 12 |
0.35 |
BN |
1560 |
Neutral Indicator Control |
I |
- |
| 13 |
0.35 |
GN/BK |
1563 |
2 HI Indicator Control |
I |
- |
| 14 |
0.35 |
BN/BK |
1566 |
4 HI Indicator Control |
I |
- |
| 15 |
0.5 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
I |
- |
| 16 |
0.5 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
I |
- |
