K32 Steering Wheel Heating Control Module
WARNING: This page is about a different car, the 2018 GMC Canyon and 2018 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

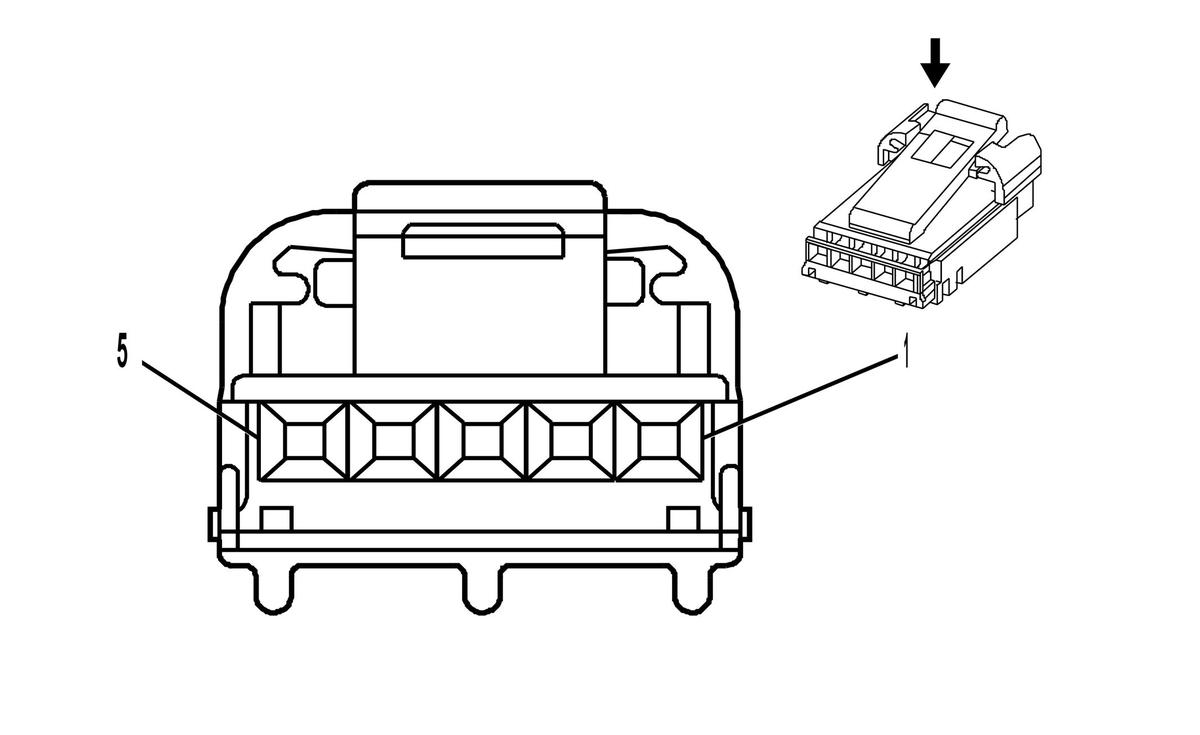

Connector Part Information
- Harness Type: Heated Steering Wheel
- OEM Connector: 31072-1010
- Service Connector: Service by Harness - See Part Catalog
- Description: 5-Way F 31072 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE/GY |
5883 |
Heated Steering Wheel Switch Signal |
I |
- |
| 2 |
0.35 |
GN |
5884 |
Heated Steering Wheel Switch LED Control |
I |
- |
| 3 |
0.75 |
VT/WH |
1139 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
