K133 Trailer Brake Power Control Module
WARNING: This page is about a different car, the 2018 GMC Canyon and 2018 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

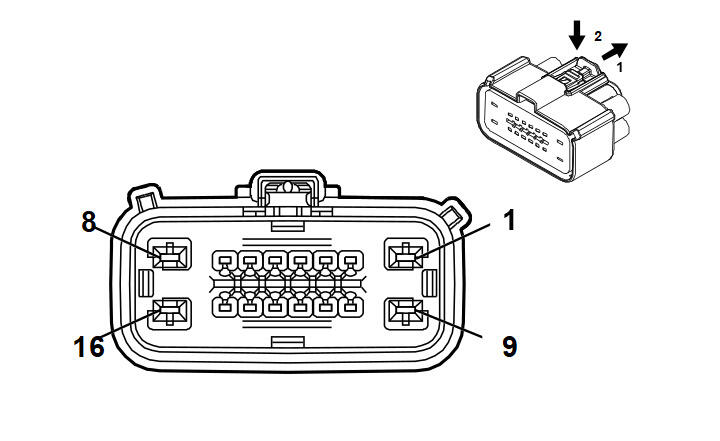

Connector Part Information
- Harness Type: Chassis
- OEM Connector: 34985-4016
- Service Connector: 13599889
- Description: 16-Way F 1.5, 2.8 Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13576377 |
J-35616-35 (VT) |
J-38125-12A |
1326030-8 |
Lear 17 |
4 |
D |
| II |
19300635 |
J-35616-2A (GY) |
J-38125-217 |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
19354739 |
J-35616-2A (GY) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
RD/GN |
242 |
Battery Positive Voltage |
III |
- |
| 2 |
0.5 |
WH/BK |
2223 |
Trailer Brake Control Signal |
II |
- |
| 3 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.5 |
YE/BK |
2224 |
Trailer Brake Enable Signal |
II |
- |
| 6 - 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
2.5 |
BU |
47 |
Trailer Auxiliary Control |
I |
- |
| 9 |
2.5 |
BK |
650 |
Ground |
I |
- |
| 10 - 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.5 |
GN/VT |
4114 |
Local Interconnect Network Serial Data Bus 14 |
II |
- |
| 13 - 16 |
- |
- |
- |
Not Occupied |
- |
- |
