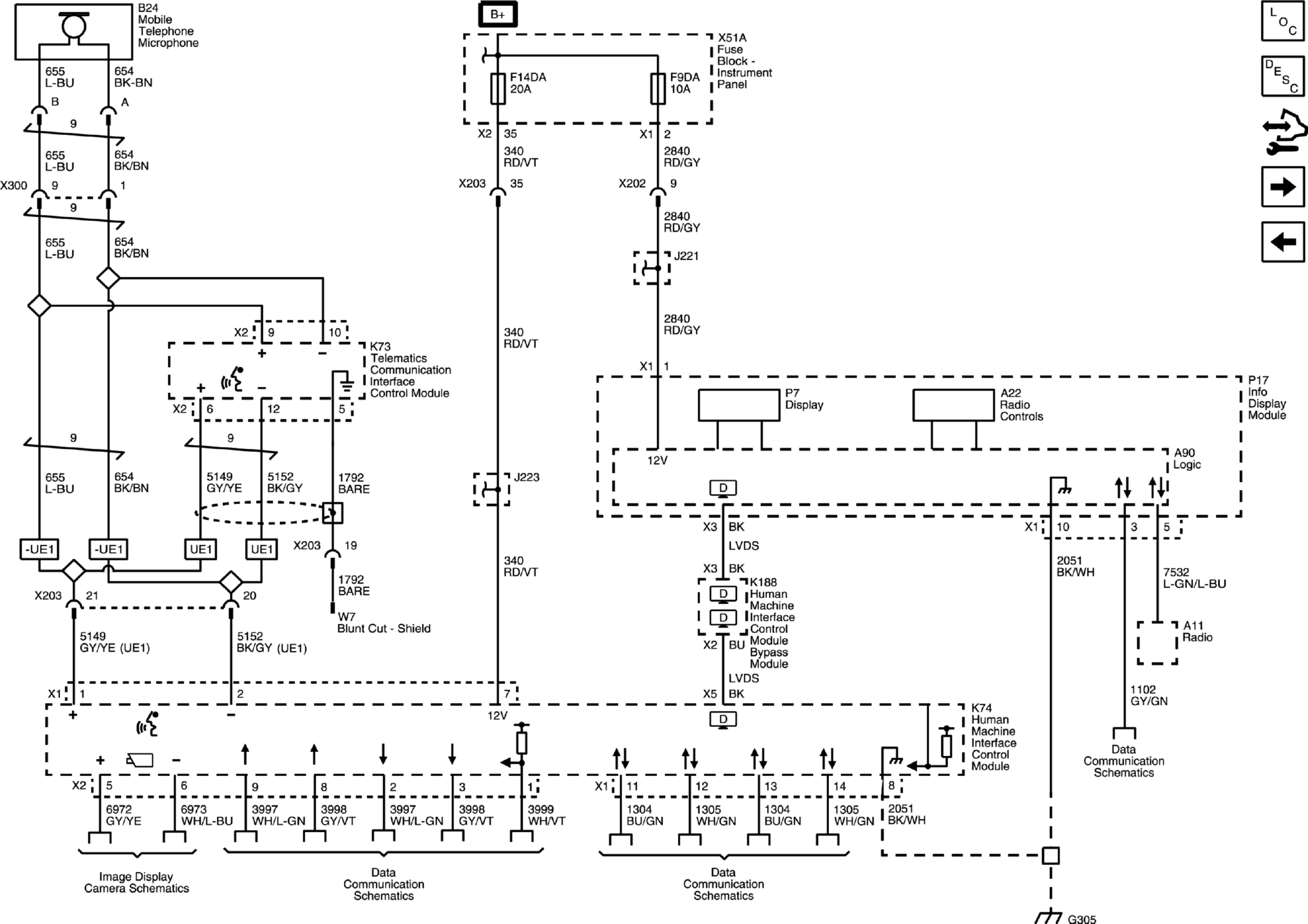

Human Machine Interface, Display, Cellular Microphone, Power, Ground and Serial Data (IO5, IO6)

WARNING: This page is about a different car, the 2018 GMC Canyon and 2018 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
