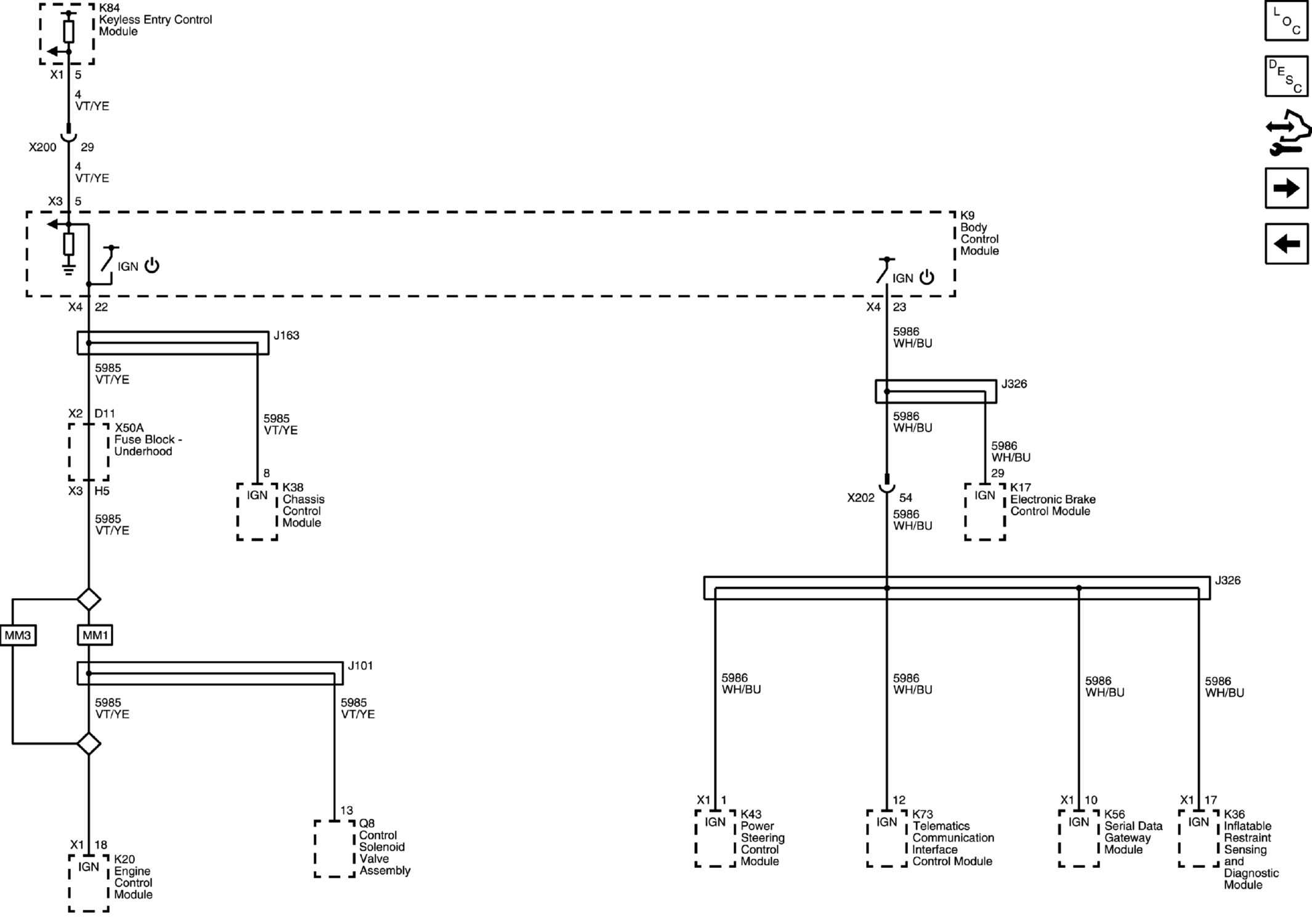

Communication Enable and Linear Interconnect Network (without ATH and BTM)

GM4787706

Courtesy of GENERAL MOTORS COMPANY
