Camshaft Position Sensor Replacement - Intake

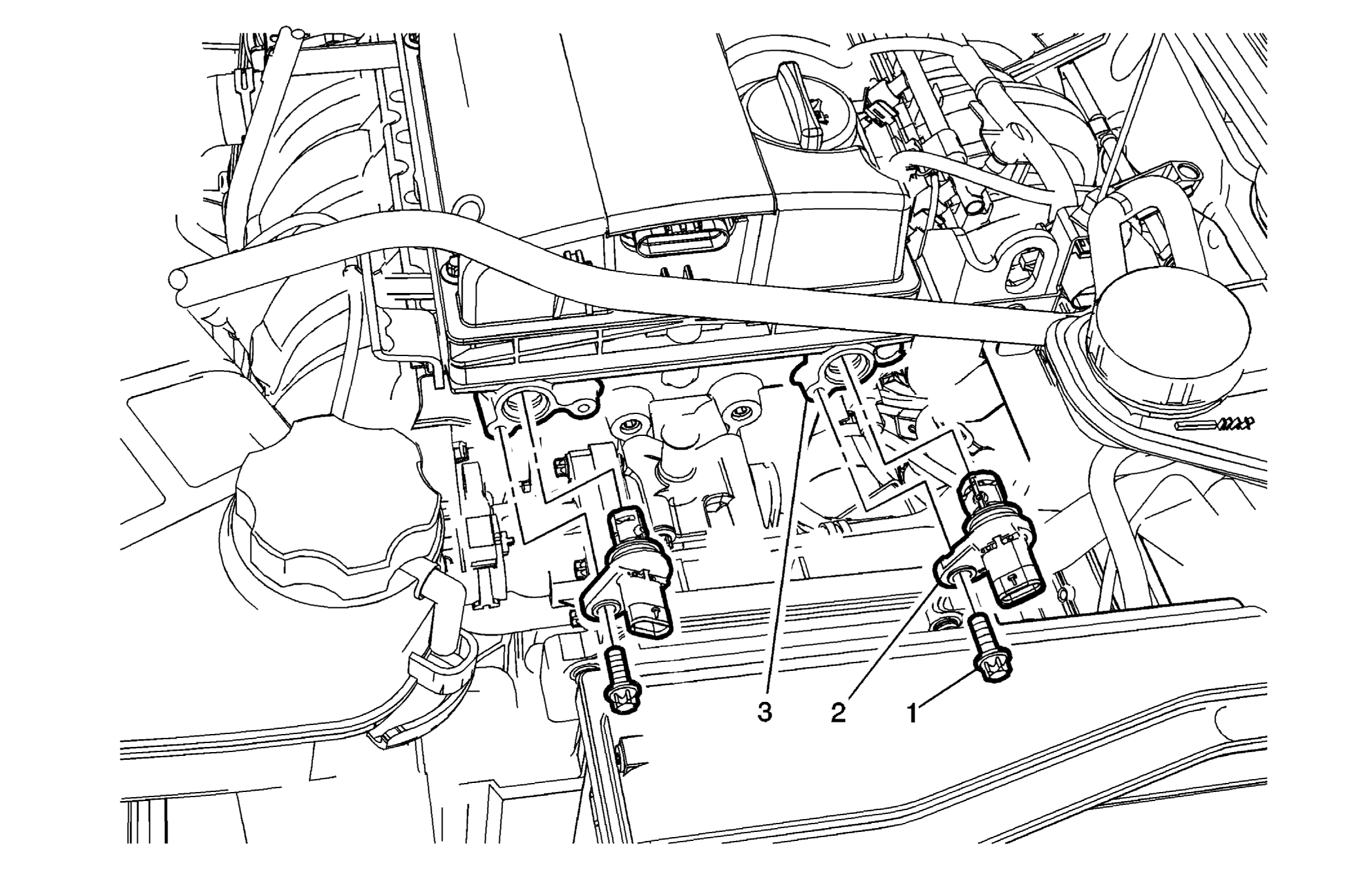

GM5040193Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Camshaft Position Sensor Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
6 N.m (54 lb in)
2 Camshaft Position Sensor
Procedure
Disconnect electrical wiring harness connector from the camshaft position sensor.
3 Remove the Camshaft Position Sensor Seal Ring
