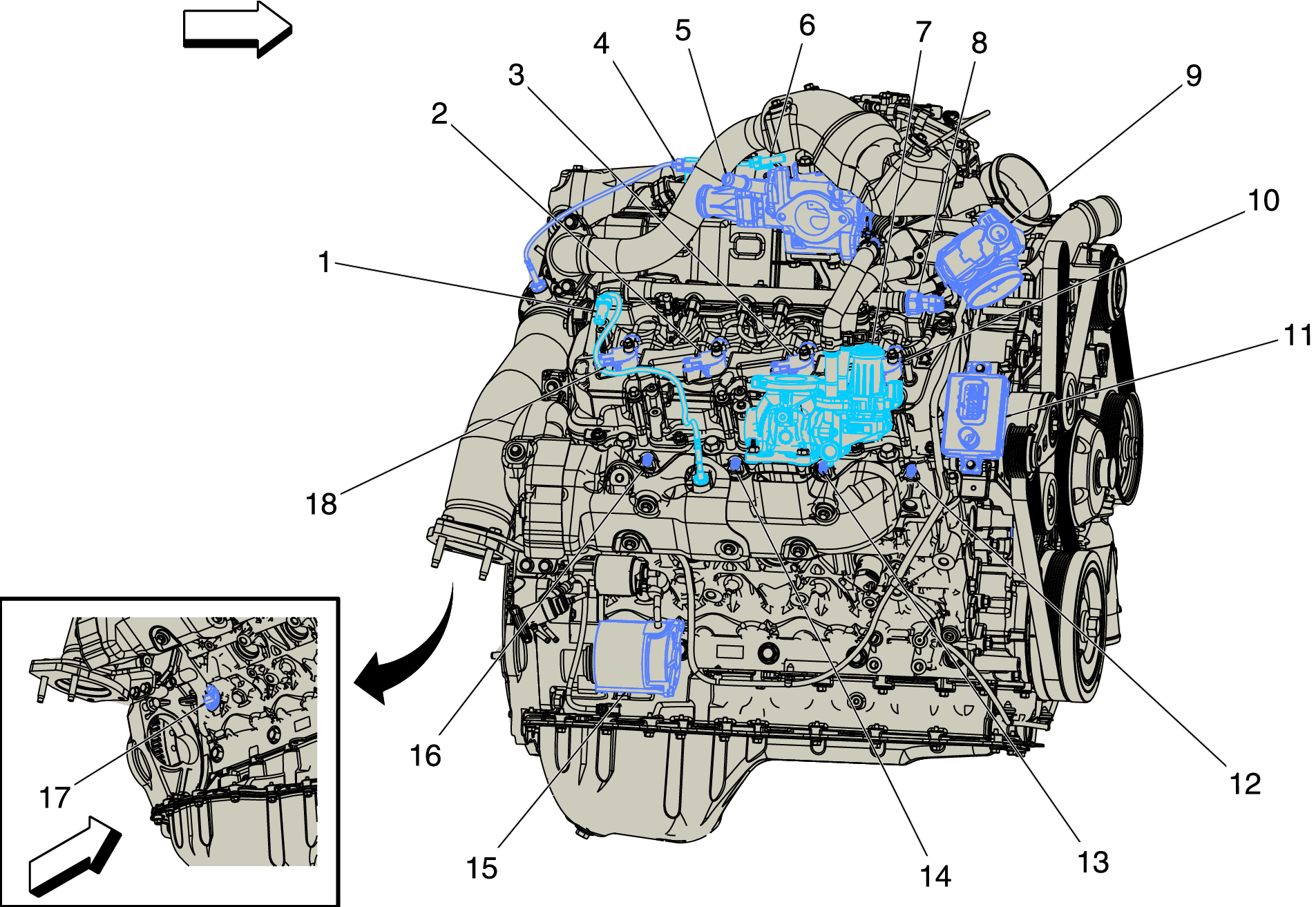

Right Side Of Engine Components (L5P)
Right Side Of Engine Components (L5P)
| Items |
|---|
| 1. B130A Exhaust Gas Recirculation Temperature Sensor 1 (L5P) B130A Exhaust Gas Recirculation Temperature Sensor 1 (L5P) |
| 2. Q17E Fuel Injector 5 Q17E Fuel Injector 5 (L5P) |
| 3. Q17C Fuel Injector 3 Q17C Fuel Injector 3 (L5P) |
| 4. B131B Exhaust Temperature Sensor 2 (L5P) B131B Exhaust Temperature Sensor 2 |
| 5. Q47 Exhaust Gas Recirculation Cooler Bypass Solenoid Valve (L5P) Q47 Exhaust Gas Recirculation Cooler Bypass Solenoid Valve |
| 6. B130B Exhaust Gas Recirculation Temperature Sensor 2 (L5P) B130B Exhaust Gas Recirculation Temperature Sensor 2 (L5P) |
| 7. Q14 Exhaust Gas Recirculation Valve (L5P) Q14 Exhaust Gas Recirculation Valve |
| 8. B47B Fuel Rail Pressure Sensor (1500 or L5P) B47B Fuel Rail Pressure Sensor |
| 9. Q38 Throttle Body Q38 Throttle Body (L5P) |
| 10. Q17A Fuel Injector 1 Q17A Fuel Injector 1 (L5P) |
| 11. K34 Glow Plug Control Module (L5P) K34 Glow Plug Control Module X2 (L5P) |
| 12. E12A Glow Plug 1 (L5P) E12A Glow Plug 1 |
| 13. E12C Glow Plug 3 (L5P) E12C Glow Plug 3 |
| 14. E12E Glow Plug 5 (L5P) E12E Glow Plug 5 |
| 15. M64 Starter Motor M64 Starter Motor X1 (L5P) |
| 16. E12G Glow Plug 7 (L5P) E12G Glow Plug 7 |
| 17. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (L5P) |
| 18. Q17G Fuel Injector 7 Q17G Fuel Injector 7 (L5P) |
