Left Side Of Transmission Components (MW7)

Left Side Of Transmission Components (MW7)

Items
1. B14B Transmission Turbine Speed Sensor (MW7) B14B Transmission Turbine Speed Sensor (L5P)
2. B14A Transmission Output Shaft Speed Sensor
3. A16 Transfer Case Motor (NQF or NQH) A16 Transfer Case Motor

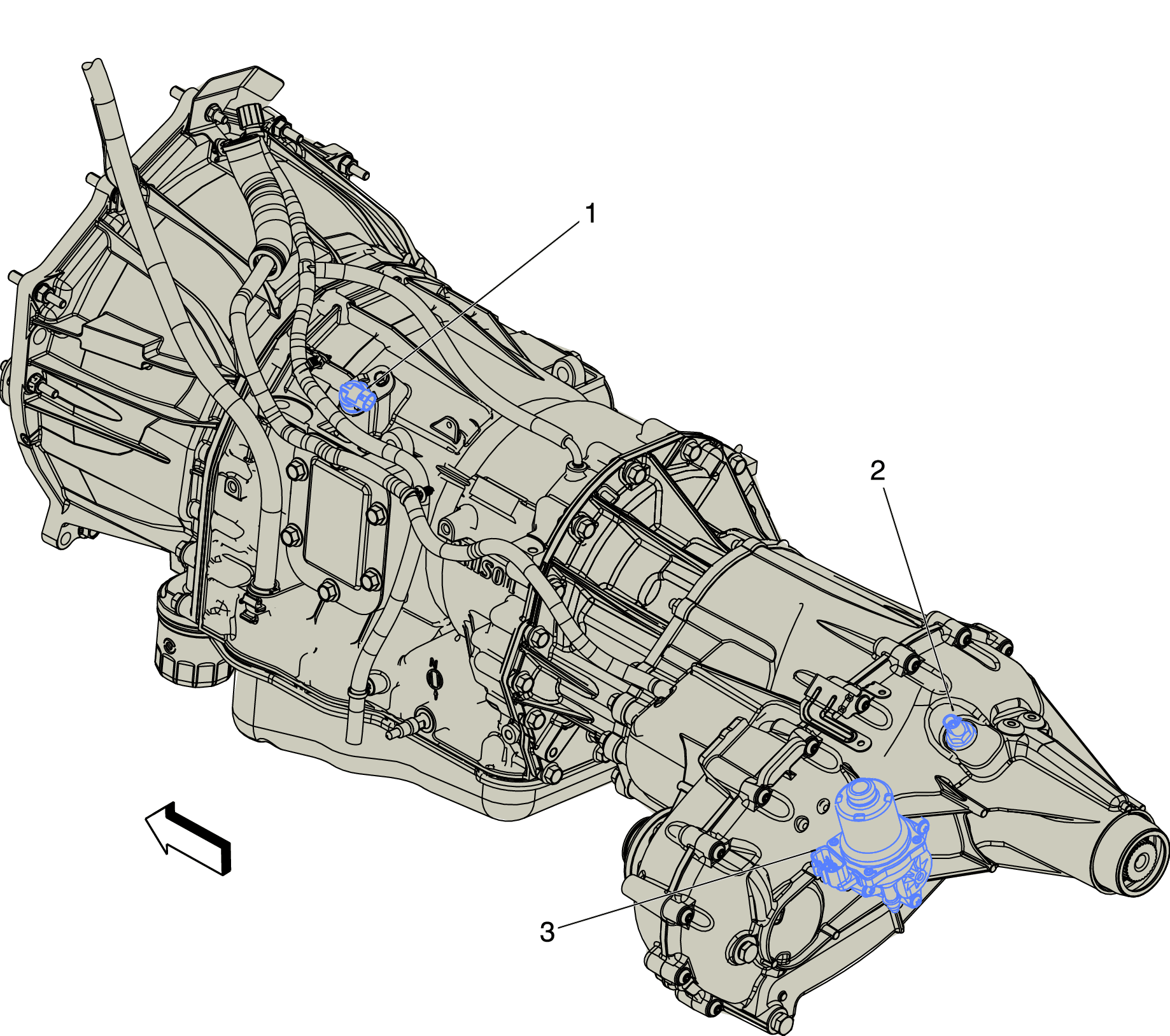

Fig 1: Left Side Of Transmission Components Location (MW7)
GM4092899Courtesy of GENERAL MOTORS COMPANY
