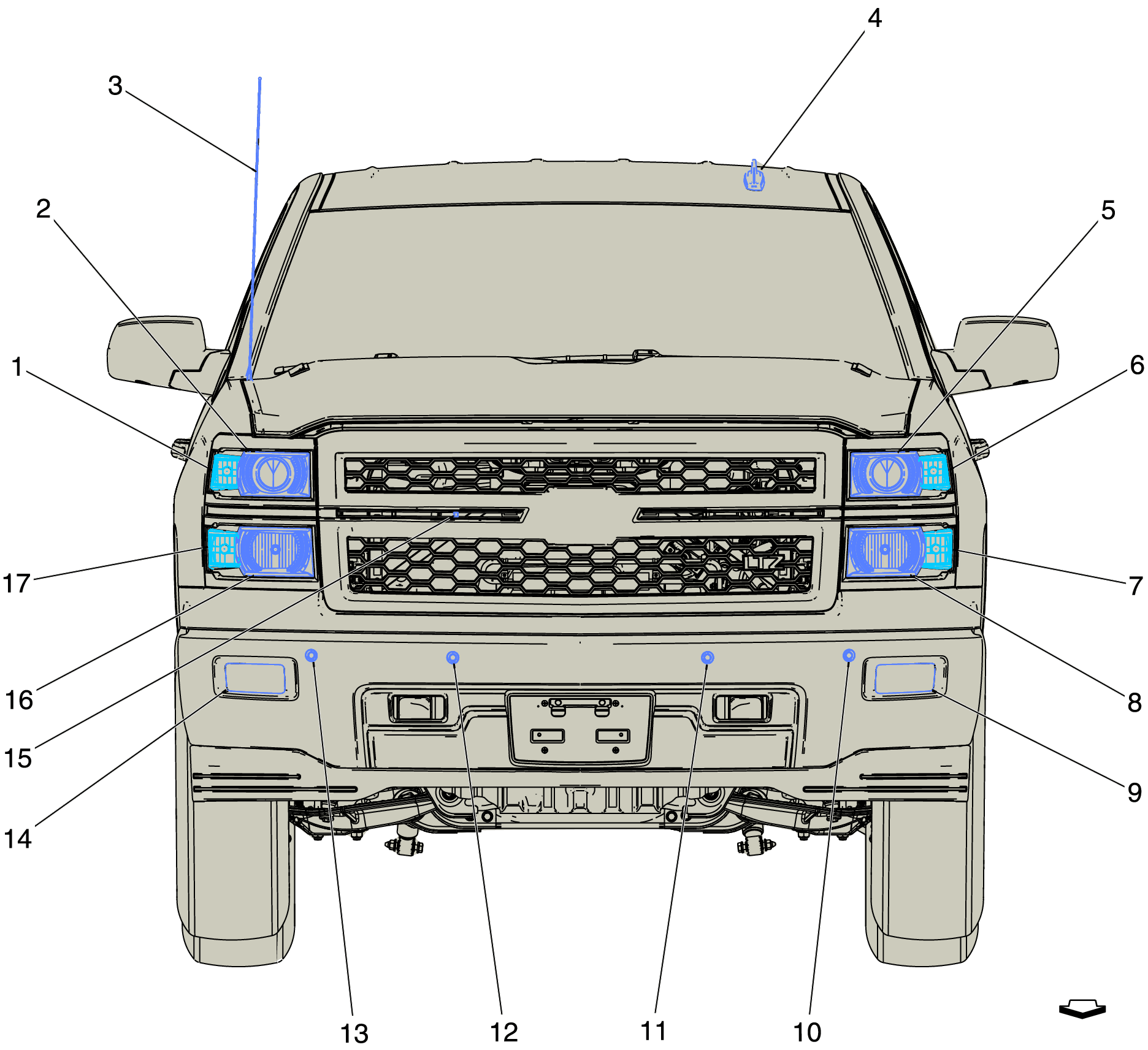

Front Of Vehicle (Chevrolet) Components
Front Of Vehicle (Chevrolet) Components
| Items |
|---|
| 1. E4T Park/Turn Signal Lamp - Right Upper (X88) |
| 2. E4H Headlamp - Right Low Beam |
| 3. T4M Radio Antenna |
| 4. T4G Cellular Phone, Navigation, and Digital Radio Antenna |
| 5. E4G Headlamp - Left Low Beam |
| 6. E4S Park/Turn Signal Lamp - Left Upper (X88) |
| 7. E4Q Park/Turn Signal Lamp - Left Lower (X88) |
| 8. E4E Headlamp - Left High Beam (X88) |
| 9. E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front (T3U+V46+(X88/Z88))E29LF Fog Lamp - Left Front (V46+V76+(X88/Z88)-SLT) |
| 10. B306A Parking Assist Sensor - Front Left Outer B306A Parking Assist Sensor - Front Left Outer |
| 11. B306B Parking Assist Sensor - Front Left Middle B306B Parking Assist Sensor - Front Left Middle |
| 12. B306C Parking Assist Sensor - Front Right Middle B306C Parking Assist Sensor - Front Right Middle |
| 13. B306D Parking Assist Sensor - Front Right Outer B306D Parking Assist Sensor - Front Right Outer |
| 14. E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front (-UD5)E29RF Fog Lamp - Right Front (UD5) |
| 15. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor |
| 16. E4F Headlamp - Right High Beam (X88) |
| 17. E4R Park/Turn Signal Lamp - Right Lower (X88) |
