Fuel Tank Pressure Sensor Replacement (With Scrubber)

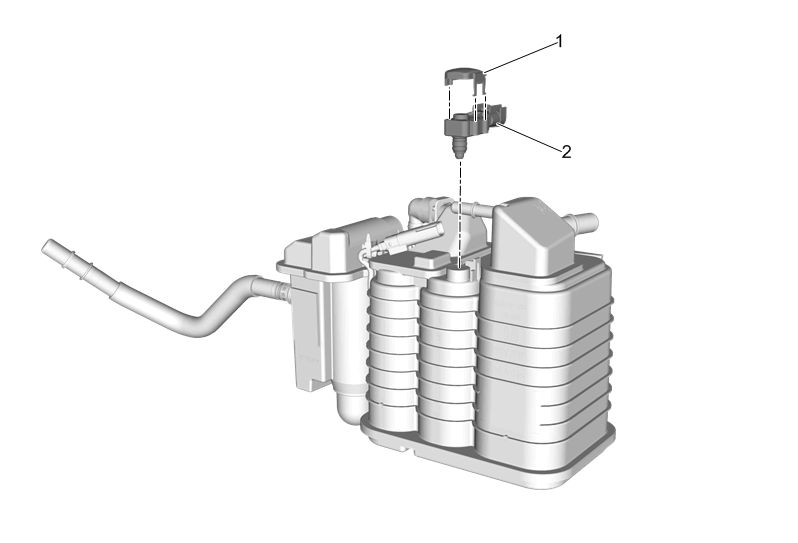

GM4943284Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Fuel Tank Replacement (With Scrubber)
1 Fuel Tank Pressure Sensor Cover
Procedure
Release the retaining tabs.
2 Fuel Tank Pressure Sensor
Procedure
Disconnect the electrical connector.
