Fuel Level Sensor Replacement (Passenger/Cargo)

Passenger/Cargo

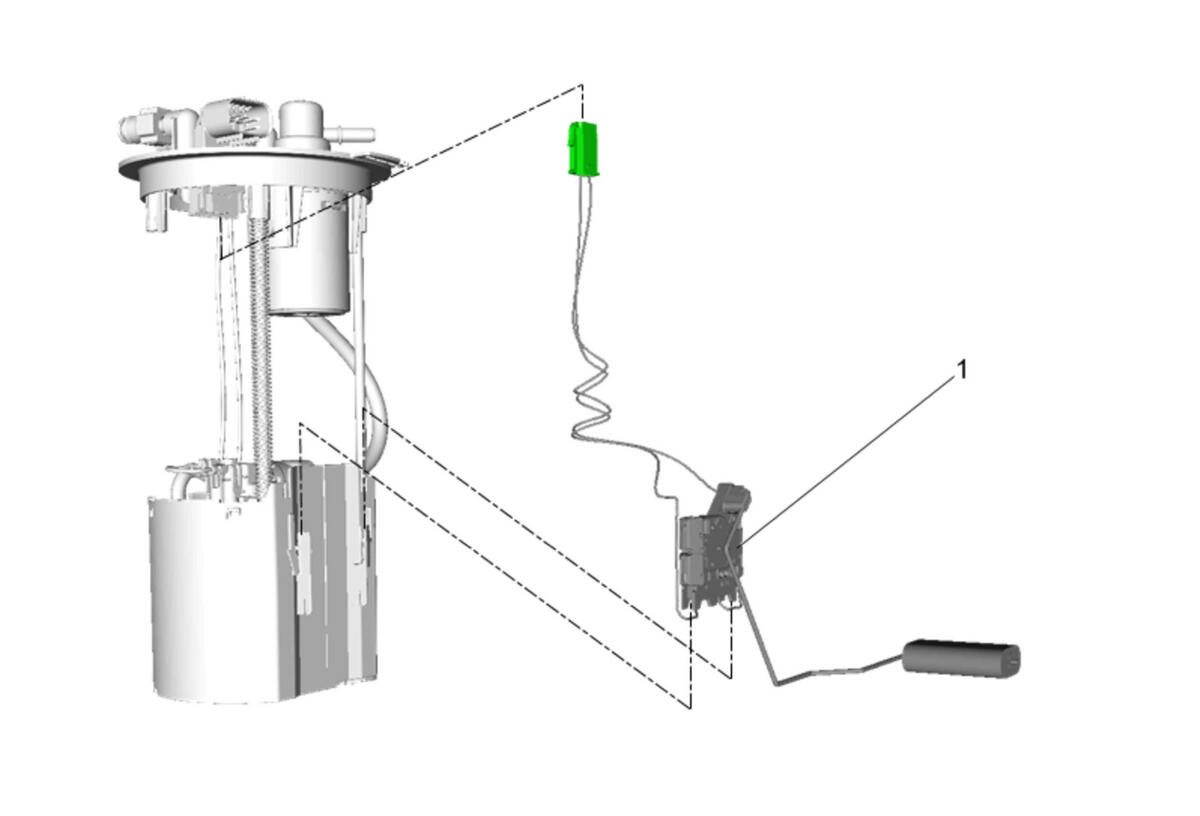

GM4845800Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Fuel Tank Fuel Pump Module Replacement (Passenger/Cargo)
1 Fuel Level Sensor

Procedure

  1. Release the plastic retaining tabs.
  2. Disconnect the electrical connector.
